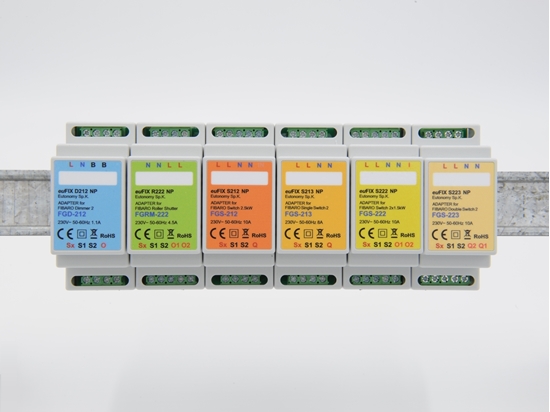

Adapter DIN for Fibaro Micromodules, without buttons
This adapter DIN is designed to mount the Fibaro dimmer micromodules or, as it were, in FGD-212 model micromodules without push-buttons. The dimensions of the adapter are appropriate for a standard DIN TH35 type rail. The base board contains a set of screw terminals, where all the wires can be safely connected.
TechInfo: Supply voltage: 230 V AC +/-10%, 50–60Hz
Dimensions: 34.8 x 87.3 x 64.7mm
Max length of cables attached to Sx,S1 and S2: 20m
Operating temperature: 0°C to +50°C
Relative humidity: =90%, no condensation
