Manufacturer: AJAX

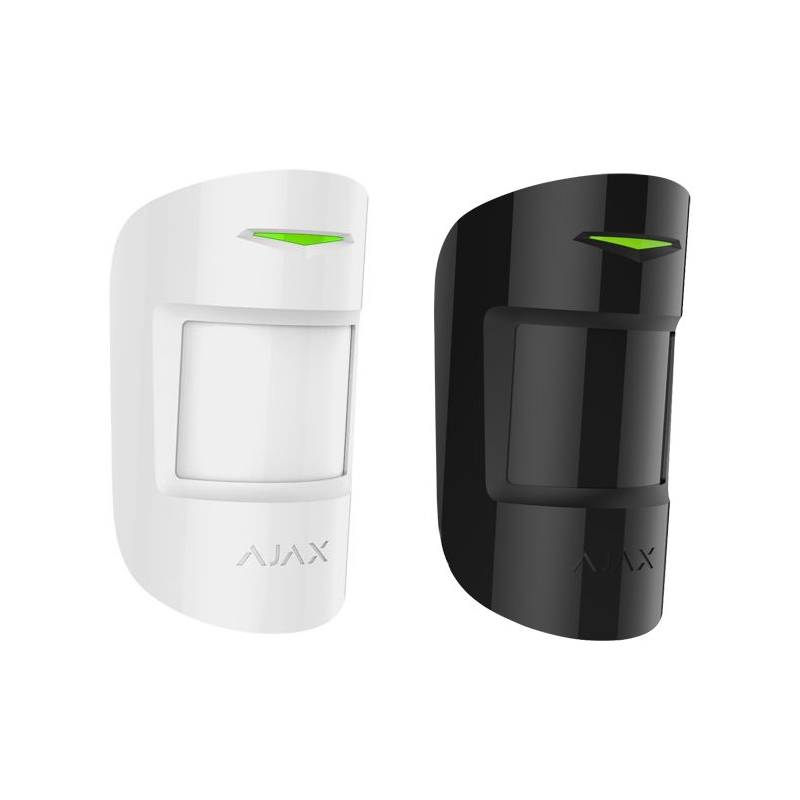

AJAX CombiProtect

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.

Bi-directional radio PIR detector with built-in glass breaker and temperature sensor; (immune to groups up to 20kg). 12m detection. CR123A lithium battery power supply. Grade 2. (Available in White CombiProtect-White.)

Principle of operation

The device combines the functions of two detectors — motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window.

Features

The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks.

Tech specs

Classification: Electro-optical combined radio channel security detector

Type of detector: Wireless

Installation method: Indoors

Compatibility: Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge

Sensing element: PIR sensor, electret microphone

Alarm signal delivery time: 0.15 s

Motion detection distance: Up to 12 m

Detection angles: Horizontal — 88.5°, Vertical — 80°

Recommended installation height: 2.4 m

Pet immunity: Weight — up to 20 kg, Height — up to 50 cm

Break detection distance: Up to 9 m

Detection angle: 180°

Sensitivity: Adjustable, 3 levels

Power supply: Battery: CR123A battery, Power supply voltage: 3 V, Battery life — up to 5 years

Jeweller radio technology:

Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Temperature sensor: Available

Operating temperature range: From +5°С to +40°С

Permissible humidity: Up to 75%

Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant

Remote setting and testing: +

Dimensions: 110х65×50 mm

Weight: 92 g

Certification: Grade 2, CE

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set:

CombiProtect combined motion and glass break detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User’s guide

AJAX CombiProtect White

€74.05 incl tax

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.

SKU: AJ-COMBIPROTECT-W

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

AJAX CombiProtect Black

€74.05 incl tax

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.

SKU: AJ-COMBIPROTECT-B

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:
