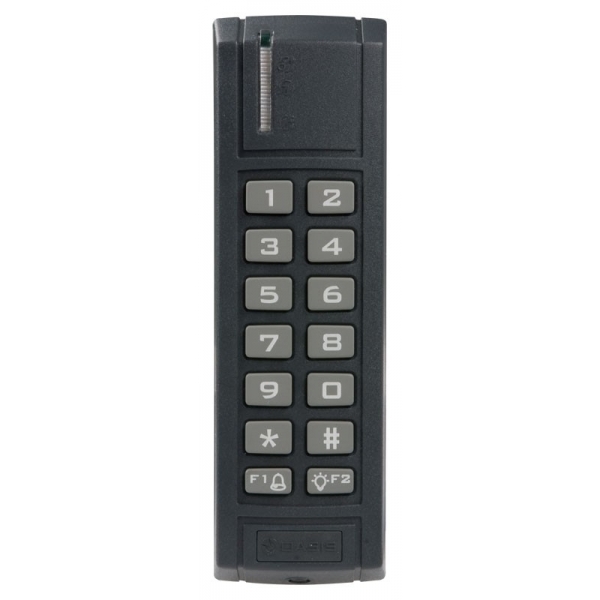

    Outdoor Keypad and RFID Card Reader

    €130,75 IVA incluido
    The JA-80H was designed to control access (door lock) or to control a security system and connects to the Oasis control panel via a WJ-80 interface. Alternatively it can be connected to an AS-80 unit as a part of a stand-alone access system. The keypad and card reader sends data in Wiegand 26b format.
    SKU: JA-80H




    TechInfo:
    • Power supply: 10 to 16V DC;
    • Stand-by consumption: typically 60mA;
    • Enclosure protection (EN 60529): IP65;
    • Mechanical endurance (EN 50102): IK08;
    • Environmental (EN 50131-1): class IV - outdoor general;
    • Operational temperature range: -25 to +60°C;
    • RFID card: Jablotron PC-01 or PC-02 (EM UNIQUE 125 kHz) ;
    • Dimensions: 46 x 150.5 x 22.5mm;
    • Length of the connection cable: 1m;
    • Complies with grade 2 (EN 50131-1, TS 50131-3);
