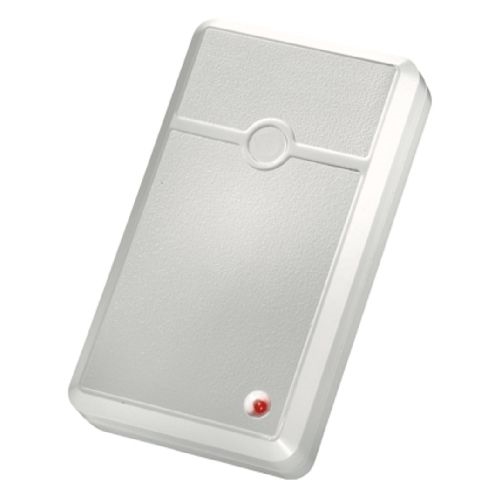

    Single-Output Wireless PowerCode™ Receiver

    €89,48 IVA incluido
    The MCR-304 superheterodyne receiver is designed for easy and cost-effective upgrading, enabling hard-wired control panels to operate with wireless remote devices. Compatible with all Visonic PowerCode™ and CodeSecure™ devices, the MCR-304 receiver supports up to 10 wireless devices – including hand-held and portable units, window/door transmitters and a variety of detectors and other devices. The MCR-304 is designed for wireless alarm, emergency and arm/disarm applications as well as for remote control systems and gate openers for garage and parking lots. It is easy to install and program utilizing a unique "Easy Learn" technique for transmitter enrolment. It provides all the features professionals require, including low battery reporting, tamper protection, RF signal jamming and transmitter inactivity output indication. When used with CodeSecure™ devices, the MCR-304 implements a rolling code encryption algorithm to prevent "code grabbing" by potential intruders trying to defeat the security system.
    SKU: MCR-304 (868)
    Features:
    • Cost-effective system upgrading from wired to wireless.
    • Designed for security alarm and control applications.
    • Easily integrated into most alarm control panels.
    • Supports up to 10 wireless devices in a single output.
    • Full supervision to ensure continuous system operation at all times.
    • Provides low battery, tamper, inactivity and RF jamming output indications.
    • Available in several optional frequencies in compliance with international standards.
    • Supports the complete variety of Visonic PowerCode™ and CodeSecure™ wireless devices.


    TechInfo:
    • Front-End Module: Super-regenerative UHF receiver;
    • Operating Frequency: 868;
    • ID codes: Over 16,000,000 possible 24-bit combinations;
    • Total Message Length: 36 bits (66 bits for code secure devices) ;
    • ID Learning Capacity: Up to 10 different ID codes;
    • Relay Outputs: Form 1C (N.C. and N.O.) ;
    • Relay Contact Ratings: 1A resistive, 30 VDC or AC;
    • Status Outputs: 3, up to 100 mA each, open-collector type;
    • Relay Output Modes: Pulsed (3 s) or toggle, jumper selected;
    • Tamper Switch Ratings: 0.1 A / 30 VDC;
    • Input Voltage Range: 10.5-16 VDC (MCR-304) or 24 VAC/DC (MCR-304U);
    • Current Drain (@ 12 VDC): 7 mA (standby), 32 mA (relay energized);
    • Compliance with Standards: FCC Part 15, CE (ETS 300220, ETS 300683);
    • Operating Temperatures: 0°C to 49°C;
    • Dimensions (H x W x D): 110x63x25 mm;
    • Weight: 76 g;
