ESTE EQUIPO ESTÁ DESCATALOGADO

Fabricante: Marmitek

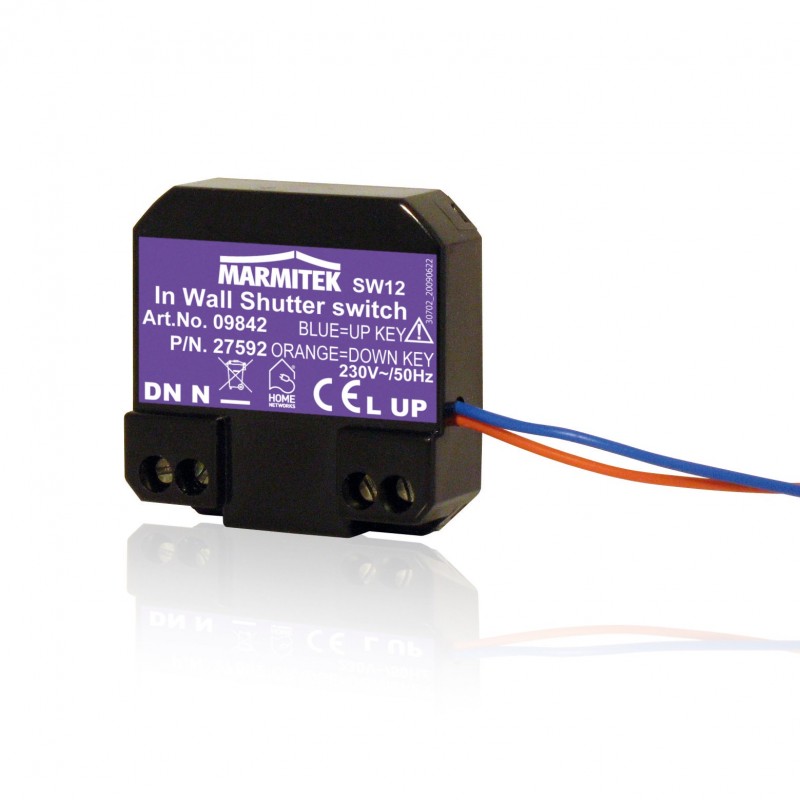

SW12 - In-Wall Shutter Module (used equipment)

Se el primero en opinar sobre este producto

€39,99 IVA incluido

Used equipment, tested by experienced technicians and it's fully functional.

The SW12 allows a motorized blind to be controlled either manually from momentary acting push switches connected to the unit, or remotely by serial X10 Powerline messages sent from a suitable controller. When controlled serially the blind can be made to go to intermediate settings in addition to fully up or fully down. The SW12 can be used with all desired design switches. Window parameters, such as Window Size and Current Position, together with the unit’s address are set into it by the user when the unit is put into Install Mode and these are stored in permanent memory. This data is retained even through a loss of power.

SKU: SW12

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Disponibilidad: Agotado

Overview
reseñas
Contáctenos

The SW12 can be wall-mounted for shutter, curtain or sunshade motor control and responds to X-10 signals;
The module responds to ‘Standard’ X10 messages ‘Address’’On’, ’Address’’Off’, BRIGHT and DIM. ‘ON’ fully opens the blind and ‘OFF’ fully closes it. BRIGHT and DIM can be used to set the blind to any position;
The SW12 will also respond to ‘Extended’ code1 X10 messages of Type = 0. Using these commands enables the unit to remotely set the blind to any desired position using a suitable controller and fully automate the blinds in the house, apartment or office;
The module works with any X-10 PLC controller and RF remote controller;
The SW12 has two 230V 50Hz control inputs that can be connected to push buttons.
Supply voltage: 230V +10% -15% , 50Hz;
Power Consumption: < 1W;
Maximum Load: 3A per channel;
Maximum drive time: 2 minutes 8 seconds approximately;
Minimum drive time: 0.5 seconds;
Sensitivity to powerline signals: 50mV p-pk @ 120KHz . For signals >50mV AGC is applied;
Terminals Screw terminals for: L, N , UP(relay) ,DN(relay) ;
Wires for: UP key (blue) and DOWN(orange) ;
Temperature Range: 0°-40°C;
Approvals (pending) EN60669-1, with reference to EN60669-2-1 and -2-2;
