Fabricante: AJAX

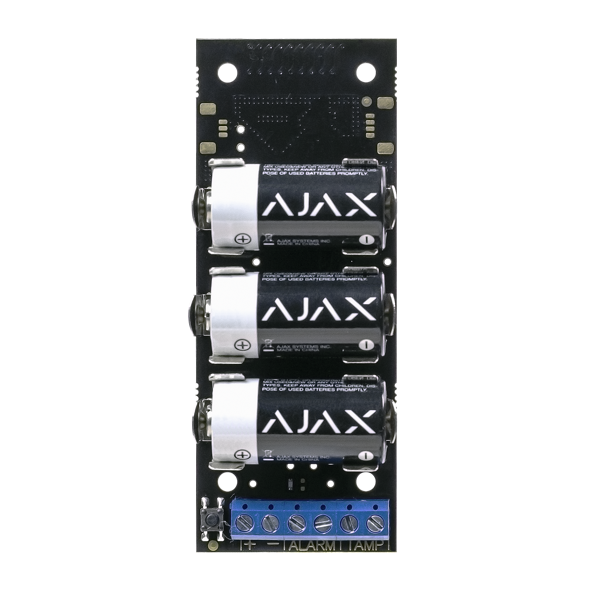

Ajax Transmitter

Se el primero en opinar sobre este producto

€38,19 IVA incluido

Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system.

SKU: Ajax Transmitter

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Cantidad:

Overview
reseñas
Contáctenos

Principle of operation

The device receives the activation signal from the detector via wired input and sends an alarm to the hub.

Features

It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.

Technical details

Classification

Module for third-party detector integration

Device type

Wireless

Installation method

Indoors/outdoors

Compatibility

Operates only with Hub, Hub Plus and ReX

Alarm input

Tamper input

Power supply current

Terminals +/−

Power supply output

3.3V

Battery charge indication

Yes

Alarm signal delivery time

0.15 s

Power supply

Battery: Three CR123A batteries
Power supply voltage: 3V
Battery life — up to 5 years

Jeweller radio technology

Communication range with central unit — up to 1,600m in an open space
Two-way communication between devices
Operating frequencies — 868.0—868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s

Temperature sensor

Available

Operating temperature range

-25°С to +50°С

Permissible humidity

Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection
Accelerometer to detect removal

Remote setting and testing

Dimensions

100x39x22 mm

Certification

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

Transmitter
Three CR123A batteries (pre-installed)
Installation set
User’s guide

Escriba su propia opinion

Solo los usuarios registrados pueden agregar sus comentarios

Su nombre *

Su correo electronico *

Subject: *

Consulta *

Principle of operation

The device receives the activation signal from the detector via wired input and sends an alarm to the hub.

Features

It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.

Technical details

Classification

Module for third-party detector integration

Device type

Wireless

Installation method

Indoors/outdoors

Compatibility

Operates only with Hub, Hub Plus and ReX

Alarm input

Tamper input

Power supply current

Terminals +/−

Power supply output

3.3V

Battery charge indication

Yes

Alarm signal delivery time

0.15 s

Power supply

Battery: Three CR123A batteries
Power supply voltage: 3V
Battery life — up to 5 years

Jeweller radio technology

Temperature sensor

Available

Operating temperature range

-25°С to +50°С

Permissible humidity

Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection
Accelerometer to detect removal

Remote setting and testing

Dimensions

100x39x22 mm

Certification

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

Transmitter
Three CR123A batteries (pre-installed)
Installation set
User’s guide
