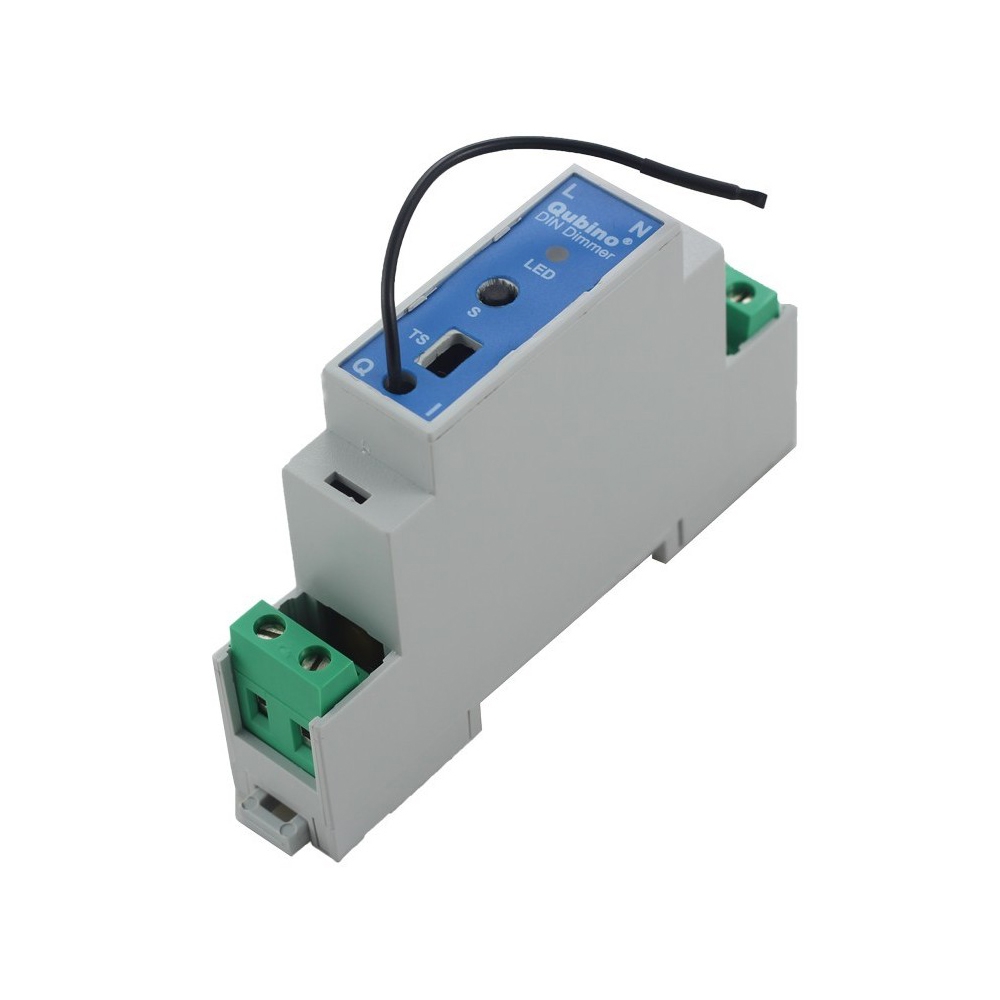

Este módulo se utiliza para la regulación de una luz o de gestionar la velocidad de un ventilador.
Gran variedad de tipos de bombillas El primero módulo (conmutación MOSFET) dimmer que también soporta el control de lámparas halógenas de bajo voltaje con transformador electrónico, luces fluorescentes compactas regulables y bombillas LED regulables. El Dimmer también soporta las luces incandescentes clásicas, lámparas halógenas operadas a 230 VAC, luces fluorescentes regulables y luces LED regulables.
Features: (MOSFET switching) dimming module which also supports control of: low voltage halogen lamps with electronic transformer, dimmable compact fluorescent light. Dimming loads: (1 to 200) W Easy Installation The module is designed to be mounted inside an electrical cabinet onto DIN rail. Extremely low energy consumption: less than 0.7 W. Extended operating temperatures: (-10 to 40) °C. Support for the connection of digital temperature sensor. Power consumption measurement integrated TechInfo: Power supply: (110 to 230) V AC ± 10 % 50/60 Hz, (24 to 30) V DC Rated load current of AC output: 0.85 A/230 V AC Rated load current of DC output: 0,85 A/30 V DC Output circuit power of AC output (resistive load): 200 W (230 V AC) Output circuit power of DC output (resistive load): 21 W (24 V DC) Power monitoring accuracy: ± 2 W Digital temperature sensor range (sensor must be ordered separately): (-50 to 125) °C Operation temperature: (-10 to 40) °C Distance: up to 30 m indoors Dimensions (W x H x D): 18 mm x 93 mm x 58 mm Package dimensions (W x H x D): 21 mm x 95 mm x 64 mm Weight: 50 g Gross weight (packaging included) : 56 g Electricity consumption :0.7 W For installation in boxes : DIN rail 35 mm Switching : MOSFET (Trailing edge)
