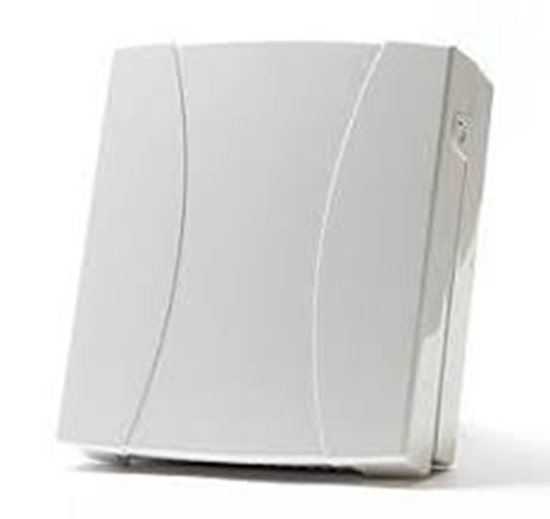

    2-Way Wireless Input/Output Expander

    €118.00 excl tax
    The 2-Way Wireless Input/ Output Expander serves two purposes; as an extension module enabling wired devices to be connected to the iConnect 2-Way Control System and permitting programmable outputs, thus allowing the connection of auxiliary electrical devices to the iConnect system which can be controlled either using the smartphone app or a keyfob.
    SKU: EL-4770
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Features: Bi-directional wireless communication
    8 zone inputs (NO, NC, EOL, DEOL)
    Up to 2 per system, meaning up to 16 wired zones + 2 on the iConnect 2-Way main board
    2 auxiliary parallel outputs 12 volts@1000mA per expander
    PGM-Programmable Outputs: Dry contact, 1A@30VDC,0.5A@25VDC
    Fully supervised
    Dual tamper protection (Box & Wall)
    Stand alone with local power (no need to run wires to the panel)
    Includes a polycarbonate box
    Optional back-up battery 12V/7AH
    Frequency: 868 and 433 MHz












    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *

    Features: Bi-directional wireless communication
    8 zone inputs (NO, NC, EOL, DEOL)
    Up to 2 per system, meaning up to 16 wired zones + 2 on the iConnect 2-Way main board
    2 auxiliary parallel outputs 12 volts@1000mA per expander
    PGM-Programmable Outputs: Dry contact, 1A@30VDC,0.5A@25VDC
    Fully supervised
    Dual tamper protection (Box & Wall)
    Stand alone with local power (no need to run wires to the panel)
    Includes a polycarbonate box
    Optional back-up battery 12V/7AH
    Frequency: 868 and 433 MHz
