Manufacturer: Philio

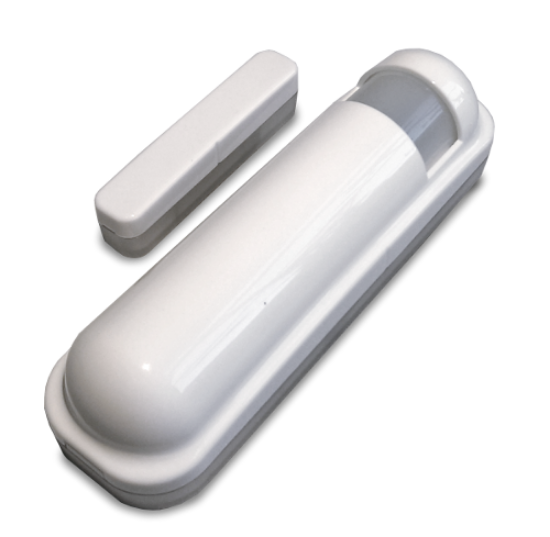

4 in 1 Sensor (motion, illumination, temperature, door) - Z-Wave Plus

Be the first to review this product

€59.00 incl tax

The Z-Wave 4 in 1 sensor (ZWphiPST02-1A) is designed with three detection sensors:

Door/window sensor;
PIR/Motion;
Temperature sensor;
Luminosity sensor.

Thanks to this the PSM02 can be uses as a security device or home automation device, e.g. to send an alarm when a motion is detected, turn the light on/ off automatically at night or to adjust the heater.
The product consists of two elements - the detector and the magnet. The magnet is mounted on the moving part of the window or of the door. The other part is placed on the frame.
Note: The illumination sensor does not work with Fibaro Homecenter 2 and Zipabox yet.

SKU: ZWPHI PST02-1A

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: In stock

Qty:

Overview
Reviews
Contact Us

Features:

Adopt newest Z-wave 400 series chip, support multichannel operation and higher data rate (9.6/40/100kbps);
Higher output power (+2.5dBm output power as compared to -2.5dBm 300 series Z-wave module) to enhance the communication range;
Built in light sensor while applied to light control;
With Tamper proof protection;
Low battery indication.

TechInfo:

Input voltage: 3V CR123A 1500mAh;
Battery life: >2 years;
Standby current: 48?A;
Operating current: 37mA;
Low battery voltage: 2.6V;
Frequency: 868.42 MHZ (EU);
Range: 40m indoor, 100m outdoor;
Operation Temperature: 0~40°C;
Humidity: 85%RH max;
Weight 52g;
Magnetic gap: 28 mm (Open?Close), 30 mm (Close?Open);
Illumination range: 0 ~ 500 lx;
PIR detection angle: 8~10m @0°, 6~8m@90°;
Dimension (WxHxD): Detector 28x96x23mm, magnet: 10x50x12mm.

Alimentação: 3V CR123A;
Duração bateria: >2 anos;
Corrente em espera: 48?A;
Corrente de funcionamento: 37mA;
Tensão de bateria baixa: 2.6V;
Frequência: 868.42 MHZ (EU);
Alcance: 40m interiores, 100m ao ar livre;
Temperatura de Operação: 0~40°C;
Humidade: 85% RH max;
Peso: 52g;
Abertura magnética: 28 mm (Aberto?Fechado), 30 mm (Fechado?Aberto);
Variação de luminosidade: 0 ~ 500 lx;
Angulo de detecção PIR: 8~10m @0°, 6~8m @90°;
Dimensões (LxAxP): Detector: 28x96x23mm, imãn: 10x50x12mm

Alimentación: 3V CR123A;
Duración de la batería: >2 años;
Corriente en espera: 48?A;
Corriente de funcionamiento: 37mA;
Tensión de batería baja: 2.6V;
Frecuencia: 868.42 MHZ (EU);
Rango: 40m en interiores, 100m al aire libre;
Temperatura de funcionamiento: 0~40°C;
Humedad: 85%RH max;
Weight 52g;
Brecha magnética: 28 mm (Abierto?Cerrado), 30 mm (Cerrado?Abierto);
Variación de luminosidad: 0 ~ 500 lx;
Ángulo de detección PIR: 8~10m @0°, 6~8m @90°;
Dimension (WxHxD): Detector 28x96x23mm, imán: 10x50x12mm.
