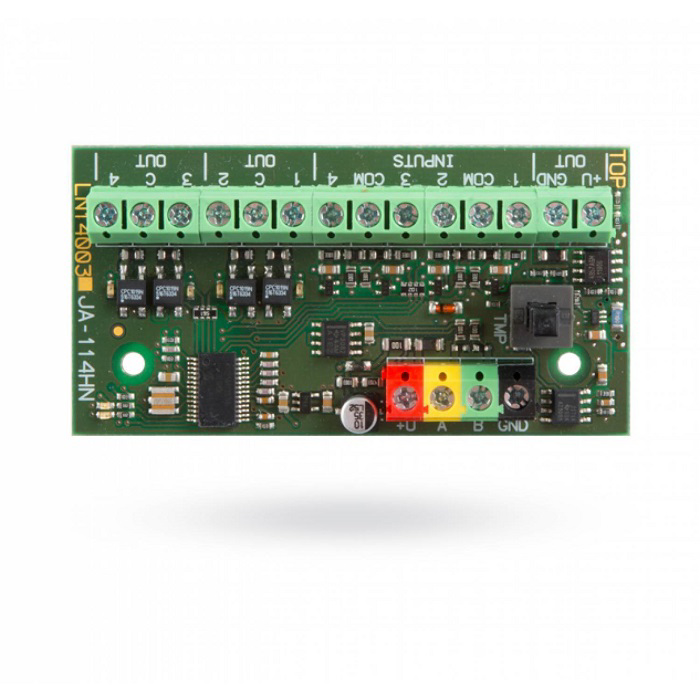

    BUS module 4 inputs + 4 wired outputs

    €50.54 incl tax
    SKU: JA-114HN
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: 1 in stock

    Specifications
    - Compatible with: F-Link 1.4.0 or higher
    - Power: through the central 12 V bus (9 - 15 V)
    - Backup consumption mode (idle): 25 mA + consumption of connected devices
    - Current consumption for cable selection: 25 mA + consumption of connected devices
    - Maximum current of an output + U: (electronic fuse): 200 mA
    - Maximum current / voltage switched by each output: 500 mA / 38 V
    - Max. resistance measured at one input: 20 kOhm
    - Max. length of supply inlet lines: 100m
    - Dimensions: 77 x 40 x 31 mm
    - Classification: security level 2, ACE type B, in accordance with: EN 50131-1, EN 50131-3
    - Environment: II. interior, general, in accordance with EN 50131-1
    - Operating temperature: -10°C to +40°C
    - Meets the requirements of: EN 50130-4, EN 55022
