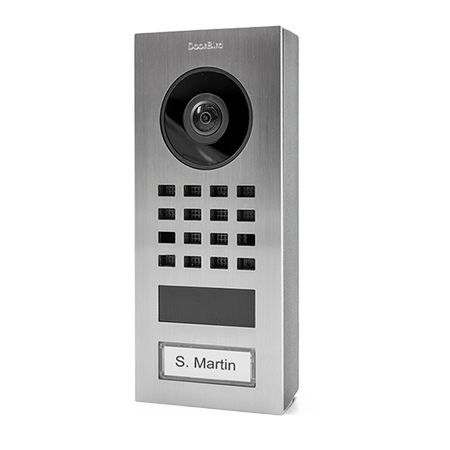

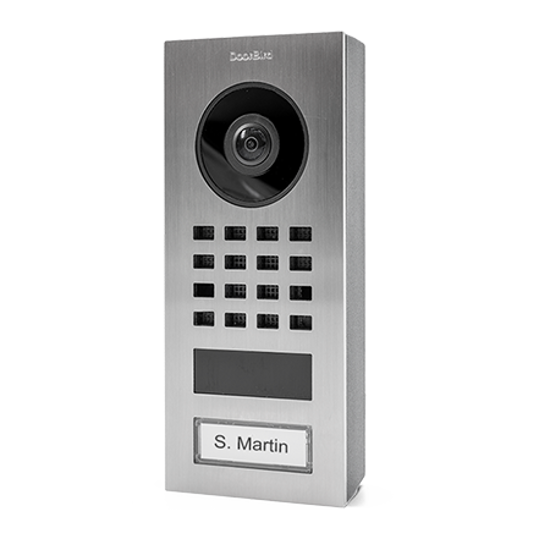

D1101V - DoorBird IP Video Door Station Surface-mount

€497.85 excl tax

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

SKU: D1101V SM

Finishing *

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Front panel
3 mm (0.12 in)
Available in brushed stainless steel
V2A / V4A and with Bronze-Finish, V4A
Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors • LAN/PoE (T+, T-, R+, R-) • Bi-stable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • Switch relays, max. 24 V DC / AC, 1 A, e.g. for conventional door chimes • External input for external door opener button • 15 V DC input (+, -), max. 15 W
Dimensions 151,9 x 65 x 32 mm (H x W x D) 5.98 x 2.56 x 1.26 in (H x W x D)
Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Camera HDTV 1080p, dynamic (VGA – HDTV)
Lens High-end ultra wide-angle hemispheric lens 200° (D), 150° (H), 90° (V), straightened, IR-capable
WiFi 2.4 GHz b/g/n
Range 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
