Manufacturer: Widom

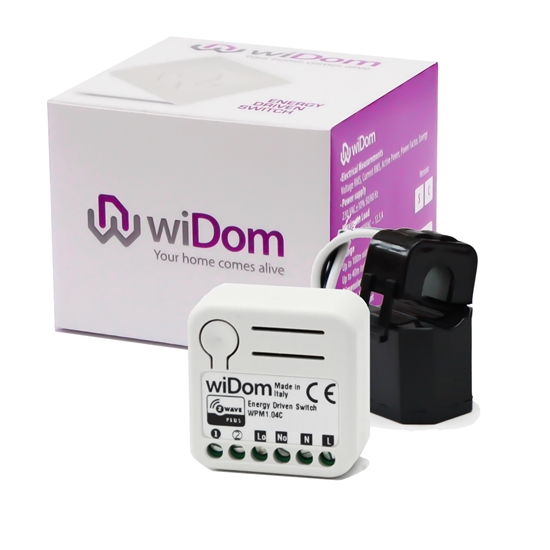

Energy driven switch TR version

Be the first to review this product

€79.95 incl tax

The smallest device in its category worldwide, and the only device specifically intended for use both as a Relay Switch with integrated power meter, and as an Energy Meter either at the point of entry of your electrical system, or on a section of the latter. Version C featuring an external current transformer, it is capable of measuring loads exceeding 10 KW. In addition to Power measurements, the device also provides data for Energy, Voltage, Current and Power factor.
he only device suited for use with all types of Z-Wave controller, and capable of implementing an active energy-saving management policy defined by the user according to his energy consumption, or to the amount of energy produced by his solar power system.

SKU: ZWWID WPMC

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Features:

Active Energy-saving Management;
Control and monitoring of usage;
Control and monitoring of production and net metering;
Monitoring of all network parameters (Power, Energy, Voltage, Current, Power Factor);
Provides bidirectional measurements for Power and Energy (produced/consumed) ;
Management and prevention of electrical faults;
Intelligent Opening/Closing of the Relay;
Control of heavy loads;
Software Update;

TechInfo:

Power Supply: 230 VAC±10% 50/60 Hz;
Maximum Load on Relay: 3000 VA – 250VAC – 12.5 A;
Work Temperature: -10 +40 °C;
Radio Protocol: Z-Wave 868,4 MHz;
Uses Z-wave Plus chip;
Radio Range: Up to 100 m outdoor, Up to 40 m indoor;
Dimensions: 37x37x17 mm;
Consumption: < 260 mW in standby, < 480 mW with working load;
Electrical IP Rating: IP 20;
Actuator element: Relay;
Conformity CE, RoHS;
Meter Range: ;

Voltage RMS: 250 V;
Current RMS: 45 A;
Active Power: ± 11250 W;
Energy: 2.000.000 kWh;
