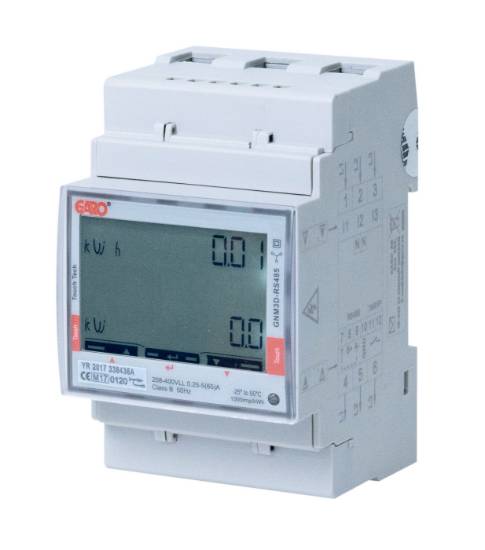

GARO THREE PHASE METER KWH 65A RS485 DIN RAIL MOUNTING

€253.60 incl tax

Three-phase energy meter with backlit LCD display with integrated touch keypad. Particularly indicated for active energy metering and for cost allocation in applications up th 65 A (direct connection), with dual tariff management availability. It can measure imported and exported energy. Housing for DIN-rail mounting, with IP51 front degree protection. The meter can be provided with pulse output proportional to the active energy being measured, RS485 Modus port or M-bus port. Available for legal metrology (only for imported energy).

SKU: GNM3D-RS485

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Specifications
Reviews
Contact Us

-Three phase energy meter
-Class 1 (kWh) according to EN62053-21
-Class B (kWh) according to EN50470-3
-Accuracy 0.5% RDG (current/voltage)
-Direct current measurement up to 65AAC
-Backlit LCD display (3x 8-digit) with integrated touch key-pad
-Energy readout on display: 8 digit
-Variable readout on display: 4 digit
-Energy measurement: kWh and kvarh (imported/ exported); kWh+ by 2 tariffs; kWh per phase
-System variables: kW, kvar, kVA, VLL, VLN, PF, Hz, kWdmd, kWdmd peak
-Phase variables: kW, kvar, kVA, VLL, VLN, A, PF
-Self power supply
-Dimensions: 3-DIN module
-Pulse output
-RS485 Modbus port
-M-bus port

-Protection degree (front): IP51
-Digital input (for tariff management)
-Easy connection or wrong current direction detection
-Certified according to MID Directive

Products specifications

Product type	Plug & Play, In wall
