    Manufacturer: Risco - Electronics line

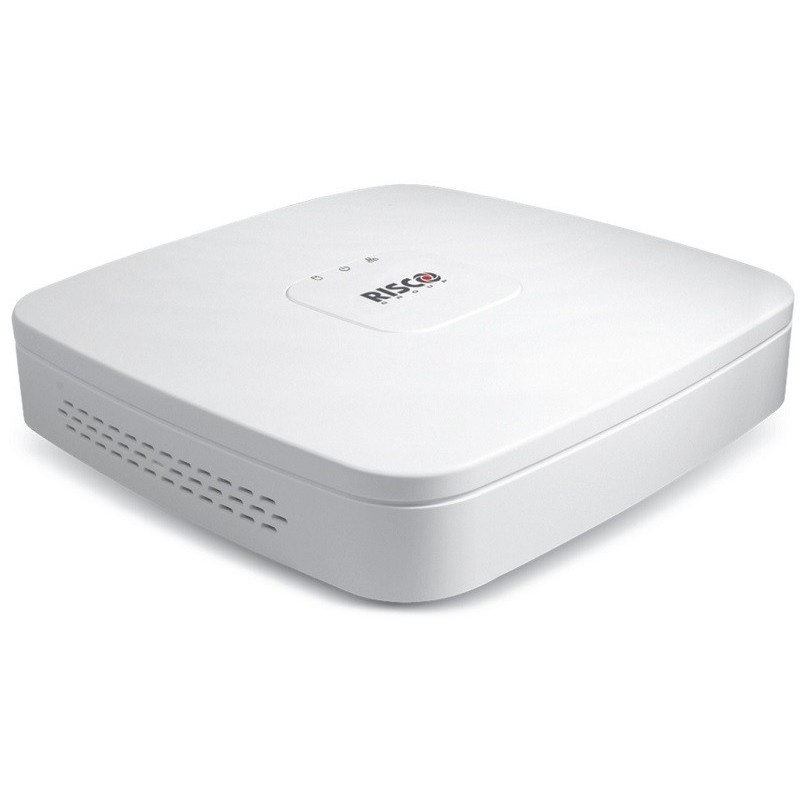

    4 Channel VUpoint NVR

    €216.80 incl tax
    €195.12 incl tax
    VUpoint NVR is RISCO’s superior plug & play recording solution. The VUpoint NVR is fully integrated with RISCO cloud, serving as a complimentary solution to VUpoint live verification solution based on P2P IP cameras.
    This comprehensive video solution, which provides video verification, live view, recording and playback, is fully integrated with RISCO’s Cloud based professional security systems, and it’s plug and play P2P functionality requires no special training or knowledge to install and maintain.
    This is a unique opportunity for installers and monitoring stations to enjoy state-of-the-art technology and growth potential of video installations, while providing customers with both reliable real time video verification and an unprecedented level of video security and privacy

    • HD Video verification of events, live video on demand and recording playback – from anywhere, anytime via a smartphone app.
    • P2P technology allows a simple Plug & Play installation – without router configuration.
    • A selection of indoor and outdoor cameras with PoE or Wi-Fi capability for an effortless installation.
    • Cloud based cutting edge technology for both existing and new RISCO security systems, providing high added value to both installers and customers.
    • Significant potential for increased revenues and dramatic sales growth.

    RVNVR040020A
    SKU: VUNVR4

    Technical Specifications

    System

    Main Processor Quad-core embedded processor

    Operating System Embedded LINUX



    Audio and Video

    IP Camera Input 4/ 8 /16 Channel

    Two-way Talk 1 Channel Input, 1 Channel Output, RCA



    Display

    Interface 1 HDMI, 1 VGA

    Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720

    Decoding Capacity 2ch@4K(30fps)/8ch@1080P(30fps)

    Multi-screen Display 4CH: 1/4 8CH: 1/4/8/9 16CH: 1/4/8/9/16



    Recording

    Compression Smart H.265+/H.265/Smart H.264+/H.264

    Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

    Record Rate 80Mbps

    Bit Rate 16Kbps ~ 20Mbps Per Channel

    Record Mode Continuous, Motion

    Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec



    Playback and Backup

    Search Mode Time /Date

    Backup Mode Smartphone, Network, USB



    Network

    Interface 1 RJ-45 Port (10/100Mbps)

    Ethernet Port 1 Independent 100Mbps Ethernet Port

    PoE IEEE802.3at/af

    Smarthphone IPhone, iPad, Android

    Interoperability ONVIF 2.4, SDK, CGI



    Storage

    Internal HDD 1 SATA III Port, Up to 6 TB capacity

    HDD Mode Single



    Electrical

    Power Supply DC48V/1.5A

    Power Consumption 4/16 Channels NVR: <7.5W (without HDD) PoE: Max 25.5w for single port, 50w in total

    Power Consumption 8 Channels: NVR: <78.3W (without HDD) PoE: Max 25.5w for single port, 80w in total



    Environmental

    Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

    Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH



    Construction 4/16 Channel

    Dimensions: 4/16 Channels Smart 1U, 204.6mm×204.6mm×45.6mm (8.1” x 8.1” x 1.8”)

    Net Weight: 4/16 Channels 0.45kg (0.99 lb) (without HDD)

    Gross Weight: 4/16 Channels 1.5kg (3.31 lb) (without HDD)

    Dimensions: 8 Channels Smart 1U, 270mm× 204.7mm ×45.7mm (10.6” x 8.1” x 1.8”)

    Net Weight: 8 Channels 0.65kg (1.43 lb) (without HDD)

    Gross Weight: 8 Channels 1.8kg (3.97 lb) (without HDD)



    Certifications

    CE EN55032, EN55024, EN50130-4, EN60950-1

    FCC Part 15 Subpart B
