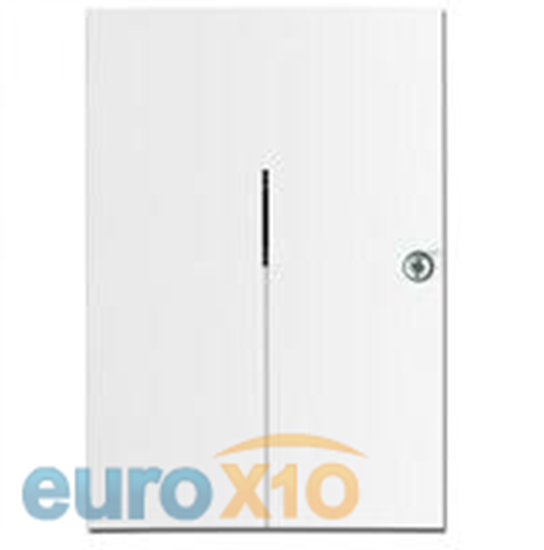

Interface For An Outdoor Keypad / Reader

€81.80 incl tax

The WJ-80 is designed to connect JA-80H outdoor keypads or JA-80N RFID readers to a control panel. It provides an output to operate the electric strike of a door lock and is equipped with a wireless door bell transmitter.
The WJ-80 can also be used to interface to a third party keypad (reader) which uses Wiegand 26b protocol (e.g. HID RK-40 a RK-10).

SKU: WJ-80

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Overview
Reviews
Contact Us

TechInfo:

Power: via the control panel bus;
Standby consumption: approx. 60mA (incl.JA-80H or 80N) ;
Output relay contact: max. 5A/60V;
Built-in doorbell transmitter: 868MHz, Oasis protocol;
Operational environment: II. indoor general, -10 to +40 °C (EN50131-1);
WJ-80 dimensions: 76 x 110 x 33 mm;
EN 50131-1, EN 50131-5-3: Grade 2;
Can be operated according to: ERC REC 70-03;
