    Manufacturer: Insteon

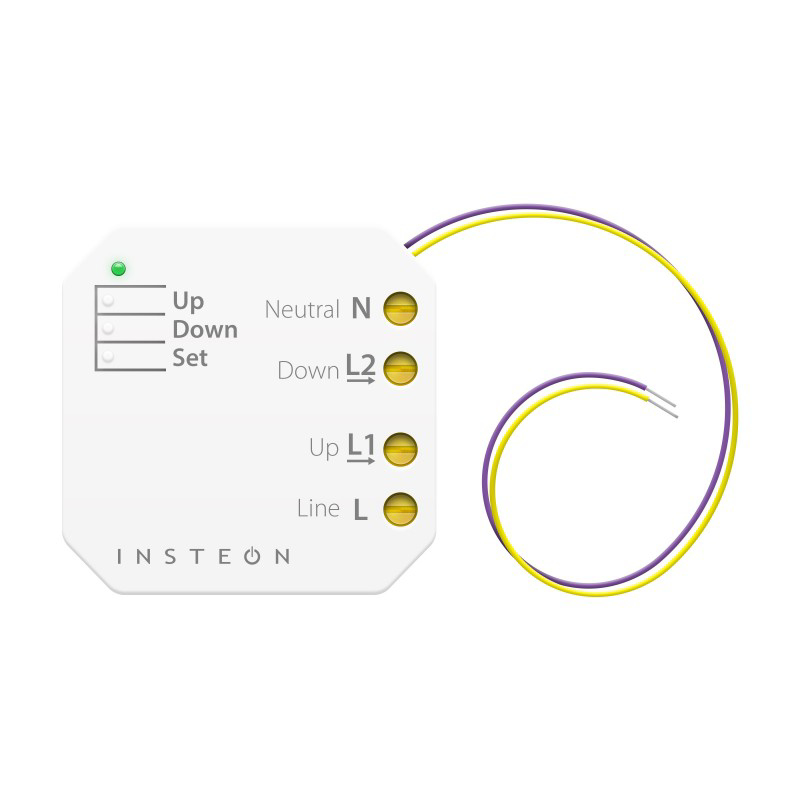

    Micromodule Open/Close (for shutters)

    €48.77 excl tax
    This module was designed to control electric shutters or curtains.
    SKU: INS 2444-422
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: In stock

    Features:

    • Two integrated relays specifically designed for two-direction motorized devices;
    • Wires in behind existing wall switch in a fixture box (requires neutral wire);
    • Compatible with latching, single momentary and dual momentary switches;
    • Sense wires allow local control from any standard wall switch;
    • X10 compatible;
    • All settings preserved in non-volatile memory, even through power failures;



    TechInfo:

    • Voltage: 100-240V AC;
    • Frequency: 50/60Hz;
    • Maximum Load: Up to 700VA;
    • Stanby consumption: <1W;
    • Dimensions: 46,6x46,6x16,3mm;
    • RF range: Up to 50m in open sight;
    • Operating temperature: 0º - 40ºC;









    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *

    Features:

    • Two integrated relays specifically designed for two-direction motorized devices;
    • Wires in behind existing wall switch in a fixture box (requires neutral wire);
    • Compatible with latching, single momentary and dual momentary switches;
    • Sense wires allow local control from any standard wall switch;
    • X10 compatible;
    • All settings preserved in non-volatile memory, even through power failures;



    TechInfo:

    • Voltage: 100-240V AC;
    • Frequency: 50/60Hz;
    • Maximum Load: Up to 700VA;
    • Stanby consumption: <1W;
    • Dimensions: 46,6x46,6x16,3mm;
    • RF range: Up to 50m in open sight;
    • Operating temperature: 0º - 40ºC;
