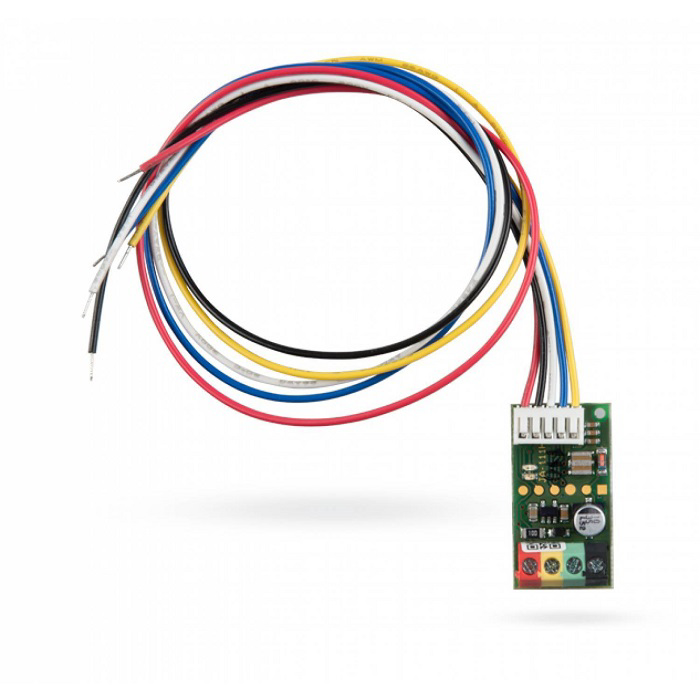

    Module for wired detectors BUS connection

    €16.87 excl tax
    SKU: JA-111H TRB
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: 1 in stock

    Specifications
    - Compatible with: F-Link 1.4.0 or higher
    - Power through the central bus: 12 V (9 - 15 V)
    - Backup consumption mode (idle) 5 mA + control device consumption
    - Current consumption for cable selection: 12 mA + control device consumption
    - Maximum acceptable load by connected control: 50 mA
    - Dimensions: 16 x 30 x 12 mm
    - Classification: safety level 2 / environmental class II
    - Complies with: EN 50131-1, EN 50131-3 (ACE Type B)
    - Operating temperature: -10 to +40 °C
    - Meets the requirements of: EN 50130-4, EN 55022
