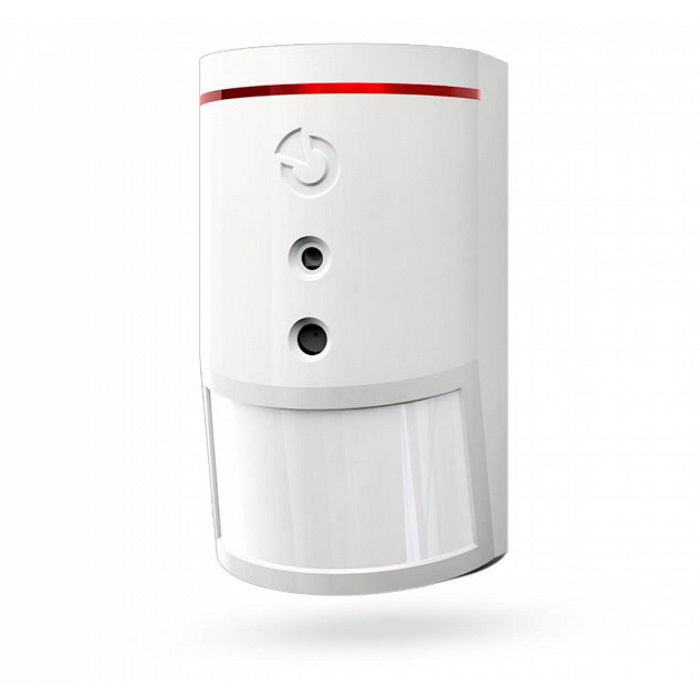

    PIR detector via radio with camera, 868MHz, p / 100 series

    €125.00 excl tax
    SKU: JA-160PC
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: 2 in stock

    SPECIFICATIONS:
    - Power: Alkaline batteries 2x AA 1.5 V (LR6)
    - Typical battery life: approx. 3 years (80 photos maximum)
    - Communication frequency: 868 MHz,
    - Communication distance: max. 300m (open field)
    - Installation height: from 2 to 2.5 m above the ground
    - Detection range: 50° / 12 m (basic lens)
    - Camera resolution: 160x128 pixels, black and white
    - Image format stored in memory: bit map (BMP)
    - Image format transmitted to the server: JPG
    - Horizontal angle of the chamber: 50°
    - Flash distance: max. 3 meters
    - Image transmission time to the central: typically 25 seconds
    - Security classification: Grade 2 according to EN 50131-1, CLC/TS 50131-2-2, EN 50131-5-3
    - Working environment: class II, indoor, according to EN 50131-1
    - Operating temperature: -10 to +40 °C
    - Dimensions: 110 x 60 x 55 mm
    - In compliance with: ETSI EN 300220, EN 55022, EN 50130-4, EN 60950-1
    - Can be operated according to: ERC REC 70-03
