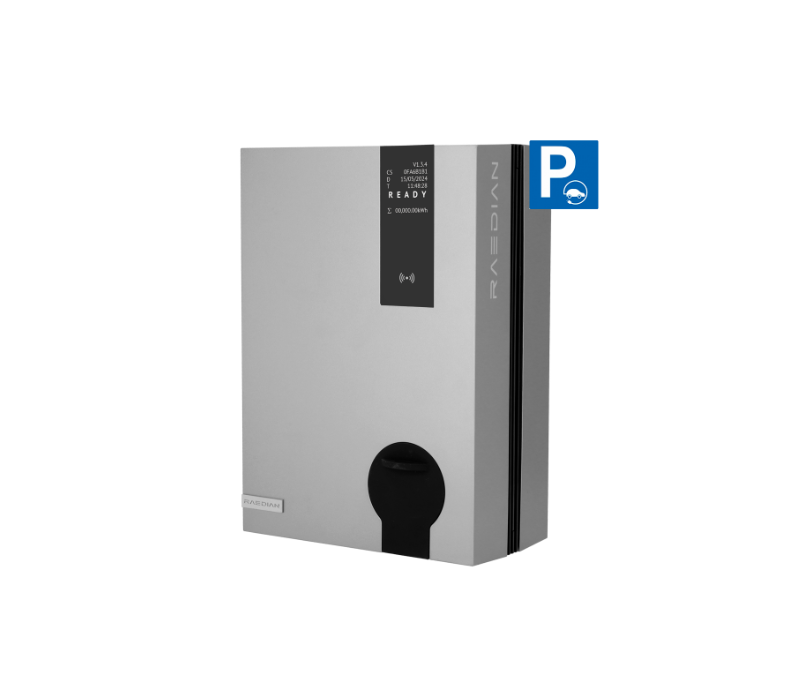

The Raedian NEX 22kW charging station represents the top tier in three-phase charging solutions. Designed for users and businesses unwilling to compromise between aesthetics and power, this Wallbox delivers an impressive 22kW (32A per phase), ensuring your electric vehicle reaches maximum charge in the shortest physically possible time.
The NEX series stands out for its strict adaptability to different needs and safety standards. Customers can choose between three output configurations: the C5 version (5-meter Tethered Cable) for maximum plug-and-charge convenience; the S version (Standard Type 2 Socket), offering flexibility to use cables of different lengths; and the exclusive SS version (Socket with Shutter), which integrates additional mechanical protection over the electrical contacts, ideal for public environments or households with small children.
Inside its premium, robust casing—boasting IP55 protection against weather and IK10 against severe impacts—lies a smart energy management system. Connected via Wi-Fi or Bluetooth (BLE) to the Raedian mobile app, it allows you to schedule charging for off-peak tariffs, monitor real-time consumption, and restrict access to authorized users only via the App or RFID card. Installation is simplified by the inclusion of a DC residual current protection system (DC 6mA), complying with the strictest standards.
Technical Specifications:
-
Brand: Raedian
-
Series: NEX
-
Maximum Power: 22 kW
-
Input/Output Voltage: 400V AC (Three-Phase) ± 10%
-
Maximum Current: 32A per phase
-
Output Format: 5m Tethered Cable / Type 2 Socket / Type 2 Socket with Shutter
-
Connectivity: Wi-Fi and Bluetooth (BLE)
-
Authentication: Mobile App, RFID Card, Plug & Play
-
Protection Rating: IP55 (Water and Dust)
-
Impact Resistance: IK10
-
Leakage Protection: Integrated DC 6mA (IEC 62955)
-
Mounting: Wall-mounted (Wallbox)
