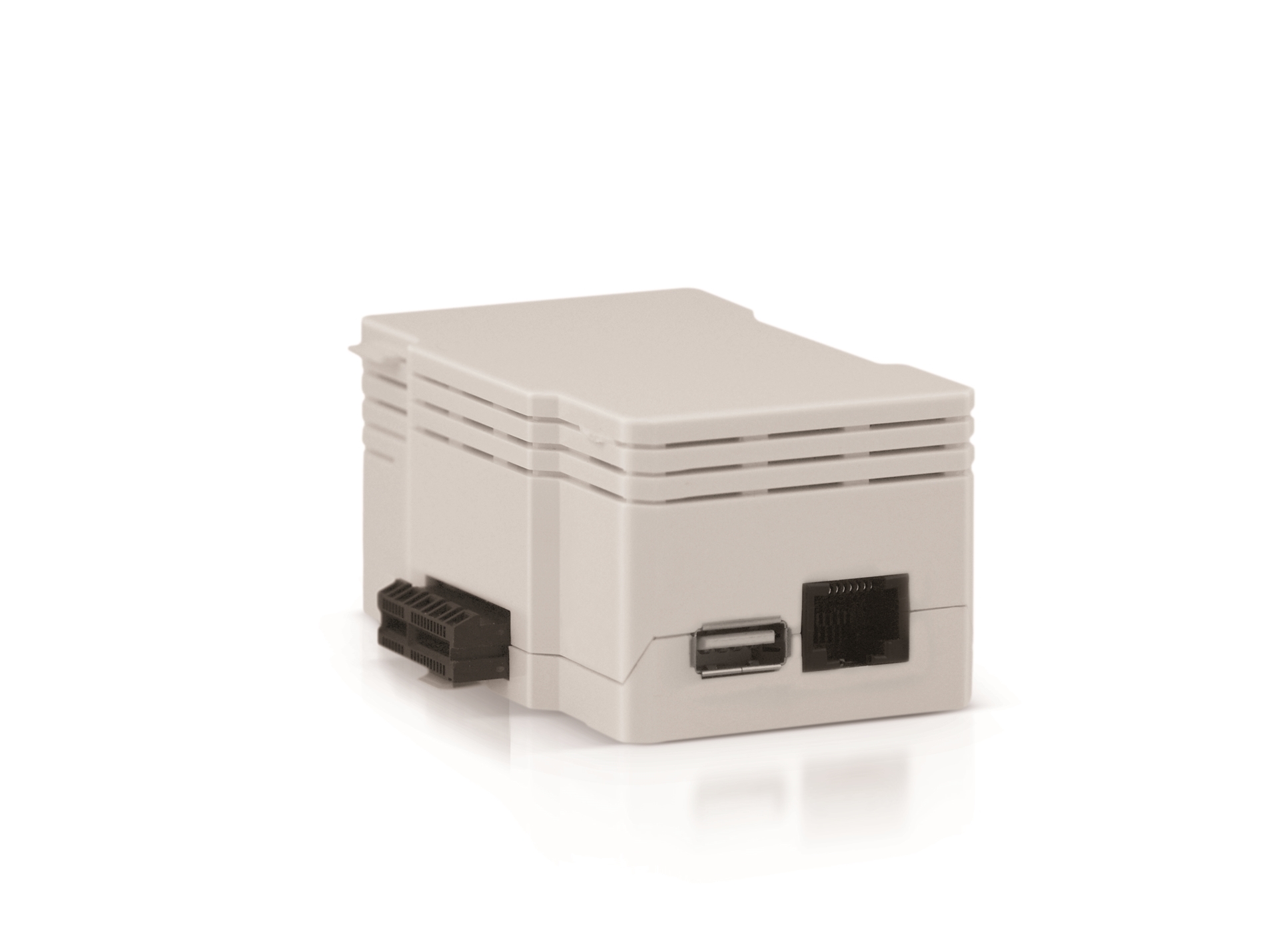

Zipabox - Security Expansion Module

Features:

• Adds wired inputs to Zipato;
• Snaps into expansion slot;
• Outputs can power connected devices;
• Input for optional siren/bell;

Application:

The expansion security module features six zone inputs, one supervised siren output, one siren input, one solid state relay PGM output, and one general purpose serial port (user-selectable between RS-232 and half-duplex RS-485 mode). The PGM output offers user-selectable positive or negative triggering.

The module also has a supervised auxiliary power output and a lead-acid battery charger, allowing you to power connected devices.

TechInfo:

• 6 on-board wire zones;
• 1 siren input;
• 1 on-board solid state relay PGM output, negative or positive triggering (user selectable);
• 1 supervised bell/siren output;
• 1 supervised auxiliary power output;
• 1 general purpose serial port;
• 1 lead-acid battery charger;

Technical Details

• Power: Powered by Zipabox;
• Battery: External 12VDC, 7Ah minimum;
• Aux. Power: 12VDC 600mA;
• Bell/Siren Out: 800mA;
• Siren In: 12VDC, 20mA;
• PGM Out: 100mA solid state relay with selectable trigger;
• Dimensions: 86(L) x 55(W) x 48(H) mm;
• Color: White;
• Temperature Range:
  • Operating: 0 to 40° C (32 to 104° F);
  • Storage: -25 to 70° C (-13 to 158° F);
• Humidity: 5 to 95 percent non-condensing;
• Regulatory Compliance (pending)
  • Safety:
  • UL;
  • EMC: FCC, CE;
  • RoHS;

Warning: Up to four Security Modules can be added to the Zipabox for up to 24 additional zone inputs.
