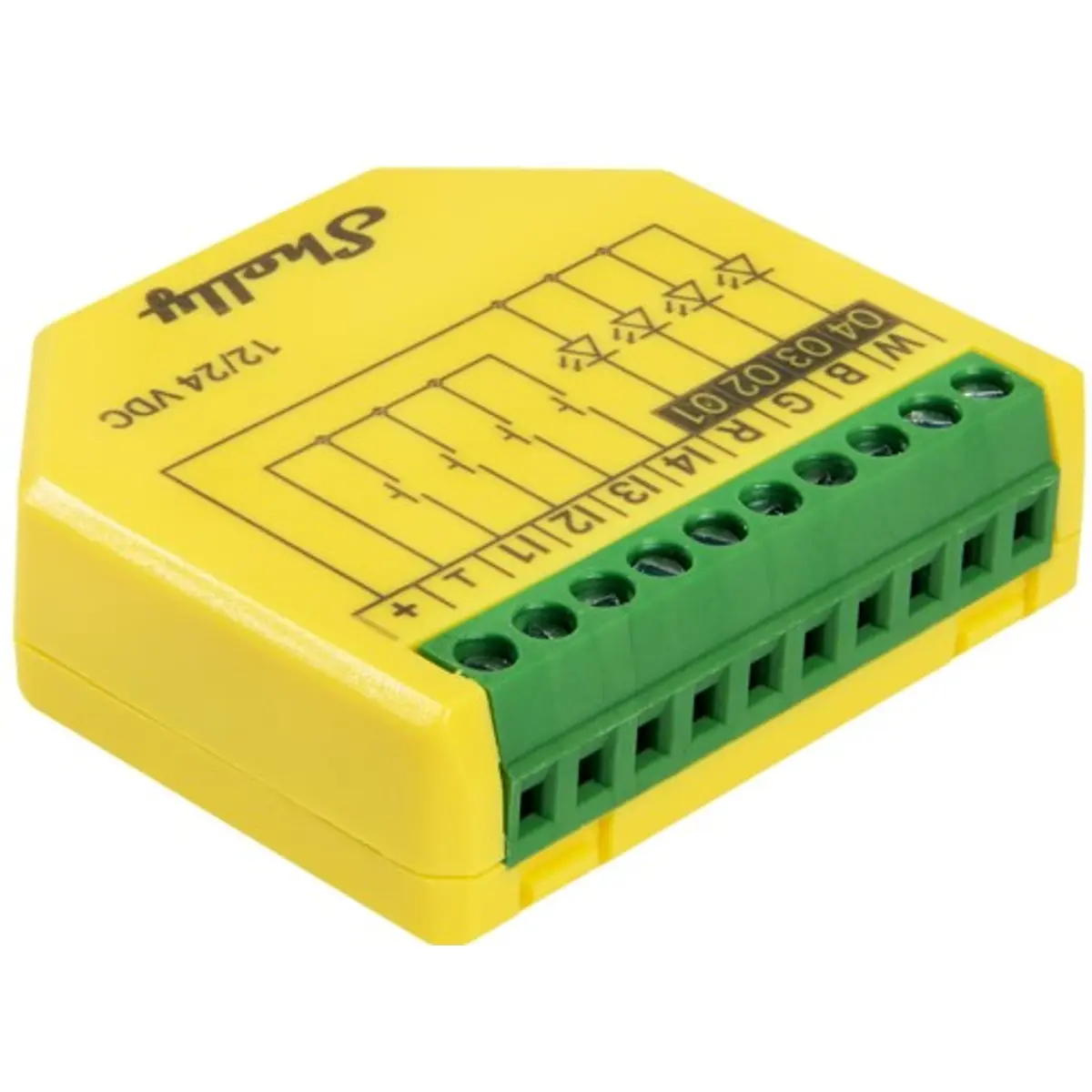

Shelly Plus RGBW PM

The Shelly Plus RGBW PM is the technological evolution for low-voltage LED lighting control. Equipped with the powerful ESP32 processor from the Plus line, this device offers unmatched response speed and the new power measurement feature, allowing you to monitor the electricity consumption of your LED strips in real-time.

This controller is extremely versatile, allowing its 4 channels to be configured to operate with RGB, RGBW, or even 4 independent white strips. Thanks to Bluetooth connectivity, pairing is instant, and the local Scripting functionality enables the creation of custom lighting effects and advanced automations without relying on external controllers.

• Power Measurement (PM): Detailed consumption monitoring across all channels.

• DC Versatility: Supports a wide range of voltages (12V - 24V DC).

• Bluetooth Gateway: Facilitates setup and acts as a bridge for Shelly BLU devices.

• Compact Design: Designed to be installed behind switches or inside aluminum profiles.

Technical Specifications:

• Power Supply: 12 - 24V DC.

• Output Channels: 4 channels.

• Max Current: 4A per channel (12A total limit).

• Max Output Power: 144W @ 12V / 288W @ 24V.

• Energy Monitoring: Yes (W, V, A).

• Processor: ESP32 (4MB Flash).

• Wireless Protocols: Wi-Fi, Bluetooth.
