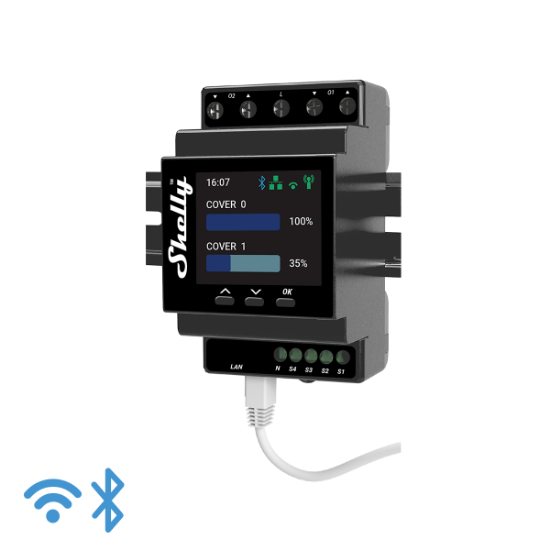

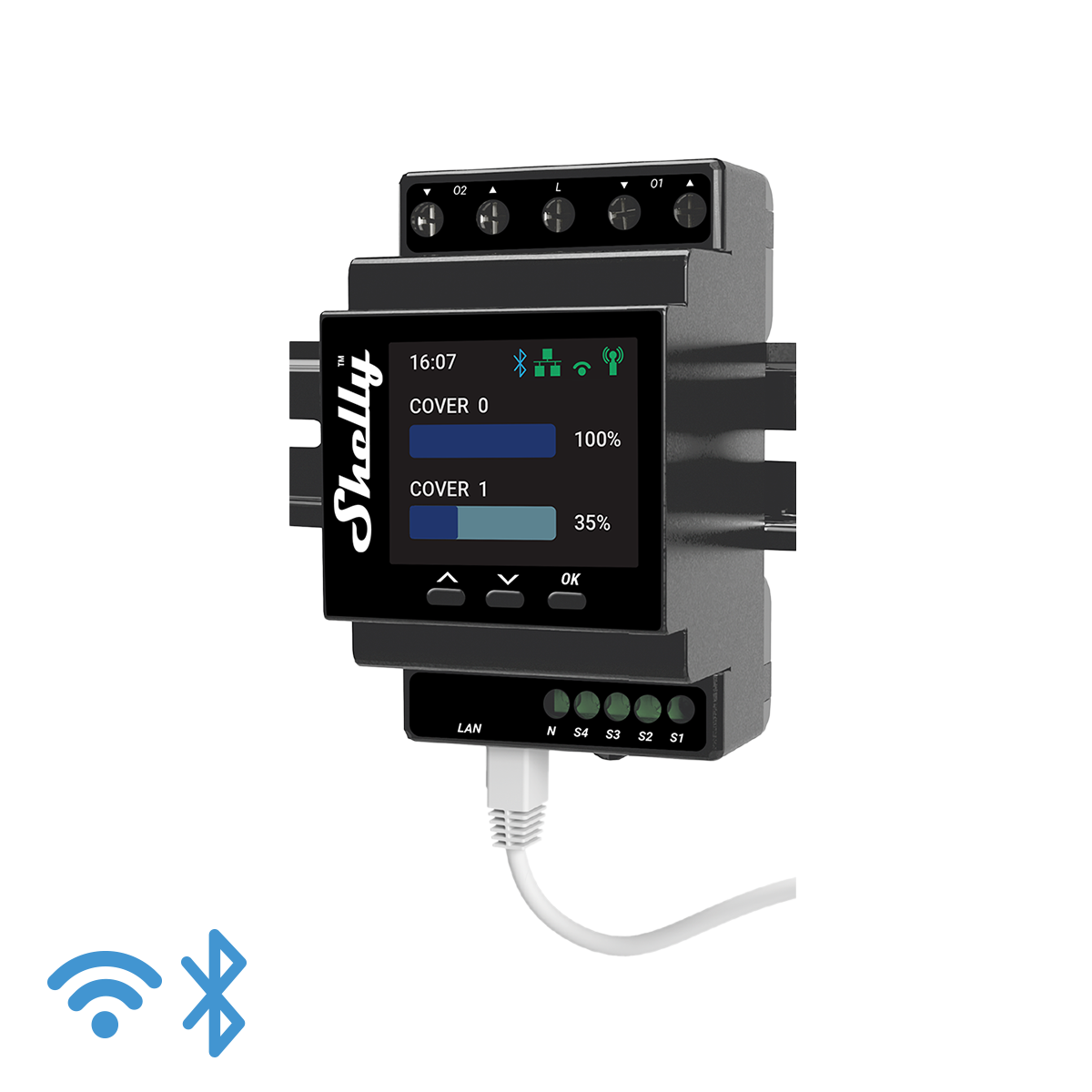

The Shelly Pro Dual Cover PM has a built-in web interface that can be used to monitor and control the device, as well as adjust its settings.
KEY FEATURES: • It has 4 relays for controlling 2 motors of blinds or motorized awnings. • Each relay has a contact that supports up to 16A. • This module has LAN, Wi-Fi, and Bluetooth connectivity. • Locally controllable through buttons next to the display. • Possibility of direct control with external buttons/switches. • Allows for precise energy measurement. • Protections against overvoltage, overcurrent, overload, and overheating. • DIN rail mountable. • It has a color display with navigation buttons:
- The top bar displays information about: · Time · Bluetooth connection status · LAN status · Wi-Fi status · Cloud status
- The rest of the LCD can display one of several pages: · Main screen: displays the status of each blind or awning · Network settings · Comprehensive module status information · Maintenance options • Can be controlled and managed through the built-in web interface. • Can be used with the Shelly Cloud app and Shelly Cloud service.
SPECIFICATIONS: ◾ Electrical
- AC power supply voltage: 110 - 240 V
- DC power supply voltage: N/A
- Power consumption: < 3 W
- Neutral wire required: Yes ◾ Output circuits
- Maximum AC switching voltage: 240 V
- Maximum DC switching voltage: N/A
- Maximum AC switching current: 16 A per output
- Maximum DC switching current: N/A ◾ Sensors / Meters
- Voltmeter (AC): Yes
- Ammeter (AC): Yes
- Internal temperature sensor: Yes ◾ Radio
- Wi-Fi protocol: 802.11 b/g/n
- RF band: 2400 - 2495 MHz
- Wi-Fi range: Up to 30m indoors and 50m outdoors
- Bluetooth protocol: 4.2
- Bluetooth range: Up to 10m indoors and 30m outdoors ◾ MCU
- CPU: ESP32-D0WDQ6
- Flash: 8 MB ◾ Firmware capabilities
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: mJS
- MQTT: Yes
- CoAP: No ◾ Environmental
- Ambient temperature: -20 °C to 40 °C
- Humidity: 30% to 70% RH
- Maximum altitude: 2000 m ◾ Physical characteristics
- Mounting: DIN rail
- Conductor cross-section: 0.5 to 2.5 mm²
- Enclosure material: Plastic
- Color: Dark gray
- Weight: 150 g
- Size (HxWxD): 96x53x59 mm.
