Manufacturer: Shelly - Allterco Robotics

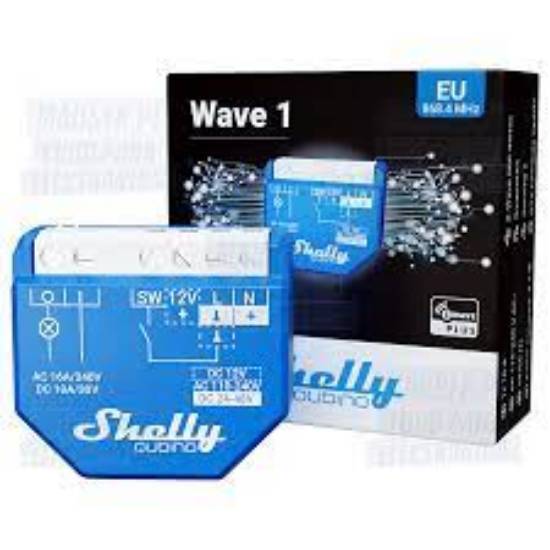

Shelly Qubino Wave 1

€28.60 incl tax

The Shelly Qubino Z-Wave 1 Relay 16A is ideal for the automation of electrical locks, gates, garage doors, irrigation systems,etc.
The output contact is voltage-free (dry contact), so different power supply loads (up to 16 A) can be connected to the device.
The device can be controlled either via smartphone or tablet according to schedules or scenes, etc.It is compatible with switches or push buttons.
A gateway (smart hub) is required for the configuration of the device.

SKU: ZWALR ZWE_W_1

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Specifications
Reviews
Contact Us

Relay Z-Wave 1 channel 16A total
Dry contact – voltage-free
Small size ensures the simplest installation behind every wall switch or wall socket
Extended wireless range: Up to 40m indoors
SmartStart for the automatic set-up.
OTA Firmwareupdate for over-the-air updates
S2 Security authenticated
Extremely low energy consumption: Less than 0.3W
Power supply: 110-240 V AC / 24-48 V DC / 12 V DC ±10%
Max. switching current AC: 16 A
Max. switching voltage DC: 30 V
Max. switching current DC: 10 A
Overheating protection: Yes
Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave S800
Ambient temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Max. altitude: 2000 m

Products specifications

Technology	Z-Wave
Function	Relay / on-off
Product type	In wall
