    Manufacturer: NodON

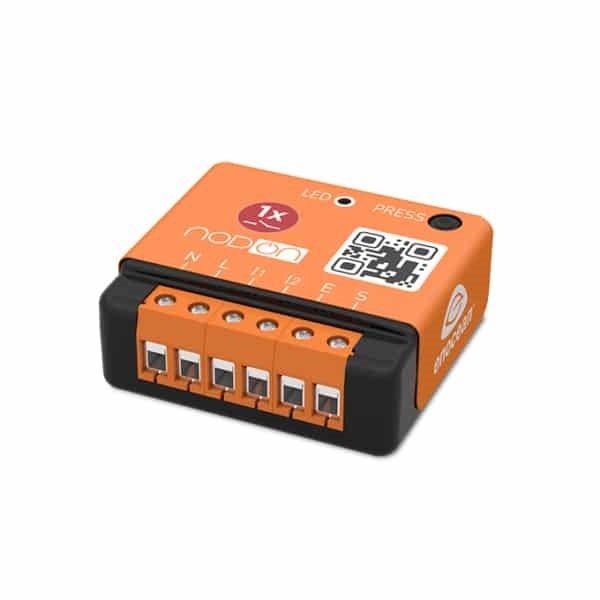

    The EnOcean® Multifunction Relay Switch

    €49.90 incl tax
    Control everything you want, from a single actuator: lights, heaters, boiler, garage door, etc… and finally make your home smart.
    SKU: SIN-2-1-01

    Compatible with the EnOcean® worldwide Smart Home / Smart Building protocol, this EnOcean® Relay Switch is mounted in your ceiling, in your wall or behind your electrical socket, and will turn any dumb device into a smart device. With its 2300W switching capacity and potential-free input, make your home smarter, without changing any single appliance.

    Technical specifications



    Power supply: 230V AC ~ 50Hz
    Switching capabilities: 230V AC – 10A // 30V DC – 10A
    Consumption: <1W
    Maximum output power: 2.3kW (Resistive load)
    Radio frequency range: 868,0 to 868,6 Mhz
    RF power max: +3dBm
    Range: Up to 30m inside
    Operational temperature: 0°C to 40°
    Protection rating: IP 2X
    Pairing: up to 22 controllers
    EEP (EnOcean Profile): D2-01-0F
    Dimensions : 40 mm (l) x 44 mm (L) x 16.9 mm (h)



    Certifications and standards



    Europe
    EN60669-1:1999+A1:02+A2:08
    EN60669-2-1:2004+A1:09+A12:10
    EN300220-2 V3.1.1
    EN301489-01 V2.1.1
    EN301489-03 V2.1.1
    EN62479:2010
