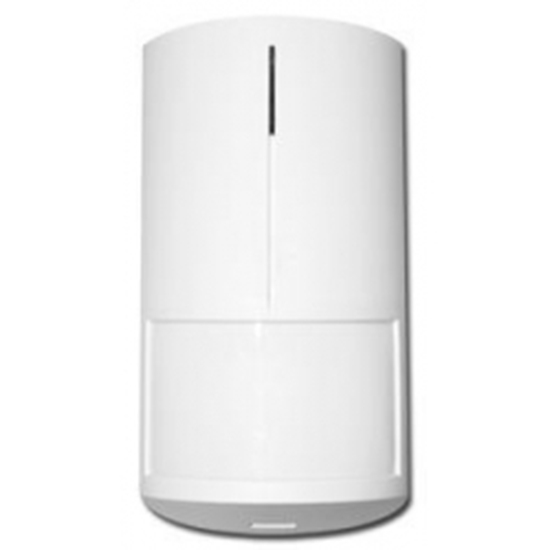

Wireless PIR Motion Detector

€83.39 incl tax

The JA-80P is designed to detect human body movement inside buildings. The detection pattern can be modified by optional lenses. Detector immunity has two selectable levels. The battery-powered detector communicates via OASIS radio protocol.

SKU: JA-80P

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Overview
Reviews
Contact Us

TechInfo:

Voltage: Lithium battery type LS(T) 14500 (3.6V AA);
Typical battery lifetime: approx. 3 years (5 min. sleep mode);
Communication band: 868 MHz, Oasis protocol;
Communication range: approx. 300m -( open area) ;
Recommended installation height: 2.0 to 2.5 m above floor level;
Detection angle/detection range: 120° / 12 m (with basic lens) ;
Operational environment according to EN 50131-1: II. internal space;
Operational temperature range: -10 to +40 °C;
Dimensions: 110 x 60 x 55 mm;
EN 50131-1, CLC/TS 50131-2-2, EN 50131-5-3 classification: grade 2;
Complies with: ETSI EN 300220, EN 50130-4,EN 55022, EN 60950-1;
Can be operated according to ERC REC 70-03;
