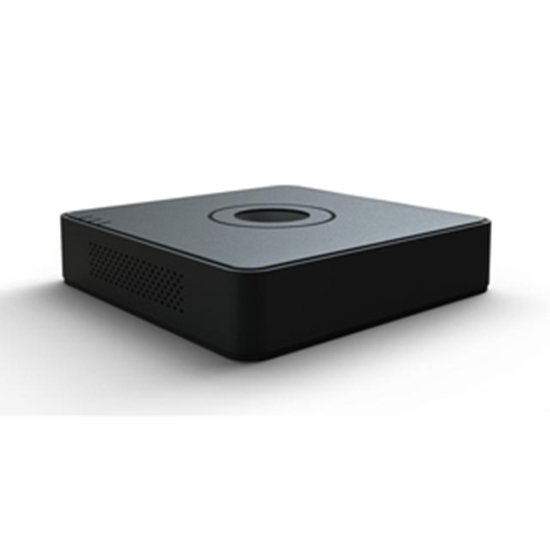

    4-channel H264 DVR, USB, LAN, Web, s / HDD

    €112.18 incl tax
    H264 DVR that supports simultaneous recording of 4 channels at resolution of WD1
    SKU: ADVR-0410H1
    Features:
    • Supports recording with WD1 e CIF/QCIF resolution;
    • Simultaneous VGA and CVBS video output;
    • VGA output resolution up to 1920×1080 P;
    • Supports dual stream;
    • Disk quota management, assigning different levels disk to different video channels;
    • Recording setup on vacation;
    • Intelligent file search by event;
    • Digital zoom in live view and recordings;
    • Simultaneous reproduction of the 4 channels;
    • Auto adapting network interface 10M/100Mbps;
    • Supports IPv6;
    • Network detection function;/li>
    • Supports NTP, SMTP, UPnP™, RTSP;
    • Supports remote access by software, browser and Android and iOS Apps.


    TechInfo:
    • Video compression: H.264;
    • Video inputs: 4 channels;
    • Video input interface: BNC (1.0 Vp-p, 75ohm), PAL/NTSC;
    • Audio input: 1 canal RCA (2.0 Vp-p, 1 kohm);
    • VGA output: 1 channel, resolution: 1080P: 1920×1080/60Hz;
    • CVBS output: 1 channel BNC (1.0 Vp-p, 75 ohm), resolution: PAL: 704 × 576, NTSC: 704 × 480;
    • Encoding resolution: WD1 (PAL: 960×576) / 4CIF / 2CIF / CIF / QCIF;
    • Frame rate: 25 ips (P) / 30 ips (N) por canal;
    • Video bit rate 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps);
    • Audio output 1-ch, RCA (Linear, 1 kO);
    • Hard disk: 1x SATA 3.5” SATA interface up to 4TB (not included);
    • Network interface: RJ45 10M / 100M Ethernet;
    • USB Interface: 2 × USB 2.0;
    • Power supply: 12 VDC;
    • Consumption: 5W without HDD;
    • Working temperature: -10 ºC ~+55 ºC;
    • Working humidity: 10% ~ 90%;
    • Dimensions: 200×200×45mm;
    Warning: HDD not included. If you want prices with HDD please contact us.





    Write your own review
    • Only registered users can write reviews
    • Bad
    • Excellent
    Features:
    • Supports recording with WD1 e CIF/QCIF resolution;
    • Simultaneous VGA and CVBS video output;
    • VGA output resolution up to 1920×1080 P;
    • Supports dual stream;
    • Disk quota management, assigning different levels disk to different video channels;
    • Recording setup on vacation;
    • Intelligent file search by event;
    • Digital zoom in live view and recordings;
    • Simultaneous reproduction of the 4 channels;
    • Auto adapting network interface 10M/100Mbps;
    • Supports IPv6;
    • Network detection function;/li>
    • Supports NTP, SMTP, UPnP™, RTSP;
    • Supports remote access by software, browser and Android and iOS Apps.


    TechInfo:
    • Video compression: H.264;
    • Video inputs: 4 channels;
    • Video input interface: BNC (1.0 Vp-p, 75ohm), PAL/NTSC;
    • Audio input: 1 canal RCA (2.0 Vp-p, 1 kohm);
    • VGA output: 1 channel, resolution: 1080P: 1920×1080/60Hz;
    • CVBS output: 1 channel BNC (1.0 Vp-p, 75 ohm), resolution: PAL: 704 × 576, NTSC: 704 × 480;
    • Encoding resolution: WD1 (PAL: 960×576) / 4CIF / 2CIF / CIF / QCIF;
    • Frame rate: 25 ips (P) / 30 ips (N) por canal;
    • Video bit rate 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps);
    • Audio output 1-ch, RCA (Linear, 1 kO);
    • Hard disk: 1x SATA 3.5” SATA interface up to 4TB (not included);
    • Network interface: RJ45 10M / 100M Ethernet;
    • USB Interface: 2 × USB 2.0;
    • Power supply: 12 VDC;
    • Consumption: 5W without HDD;
    • Working temperature: -10 ºC ~+55 ºC;
    • Working humidity: 10% ~ 90%;
    • Dimensions: 200×200×45mm;
    Warning: HDD not included. If you want prices with HDD please contact us.
