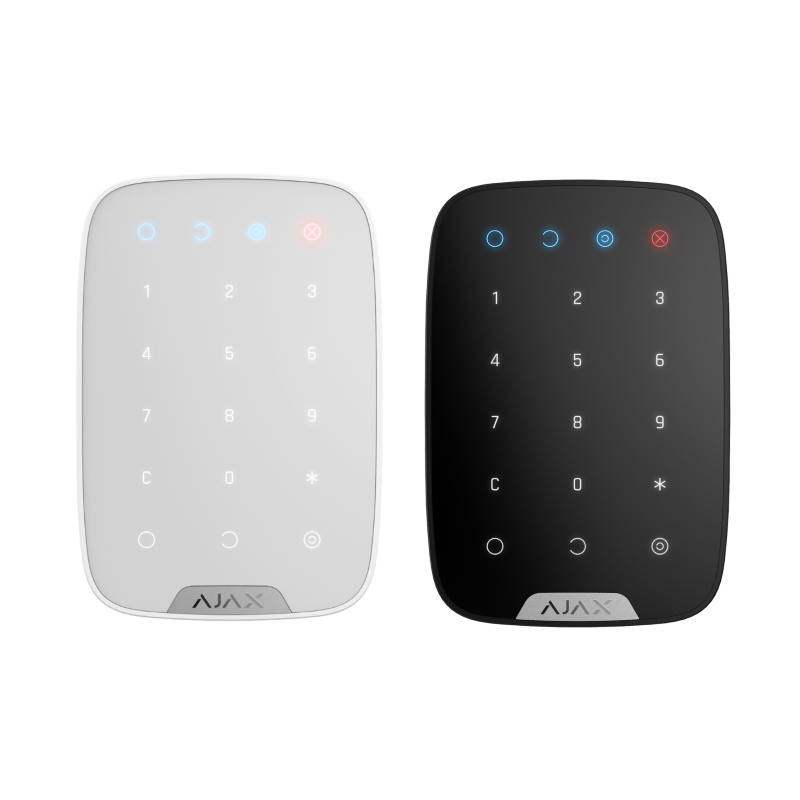

Bidirectional radio keyboard with functions: Arm, disarm, partial and panic. Built-in temperature sensor. Power supply 4 batteries AAA 1.5V; Grade 2. (Available in Black KeyPad-Black.)
Principle of operation
The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub.
Features
Alarm button is available. It notifies of each attempt to guess the password and blocks automatically if the permissible number of entries is exceeded.
Classification: Radio channel touch keypad
Type of keypad: Wireless, touch
Installation method: Indoors
Compatibility: Operates only with Hub, Hub Plus and ReX
Protection against password attack: Yes
Protection against passcode guessing: Yes
Arming/disarming indication: Yes
Power supply: Battery: ААA batteries, Power supply voltage: 3 V, Battery life — up to 2 years
Jeweller radio technology:
- Communication range with central unit — up to 1,700 m in an open space
- Two-way communication between devices
- Operating frequencies — 868.0−868.6 MHz
- Self-adjusting RF output power — up to 20 mW
- Block encryption based on AES algorithm
- Keypad scanning period — 12−300 s
Temperature sensor: Available
Operating temperature range: -10°С to +40°С
Permissible humidity: Up to 75%
Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testin:+
Dimensions: 150х103х14 mm
Certification: Grade 2, CE
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
Complete set:
- KeyPad touch keyboard
- SmartBracket mounting panel
- 4 ААА batteries (pre-installed)
- Installation set
- User’s guide
