Manufacturer: AJAX

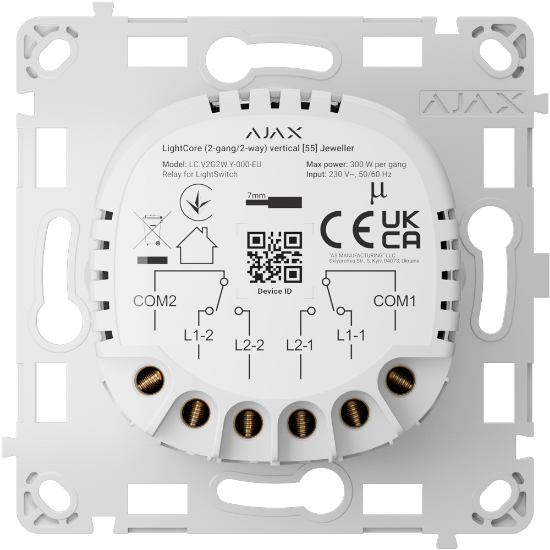

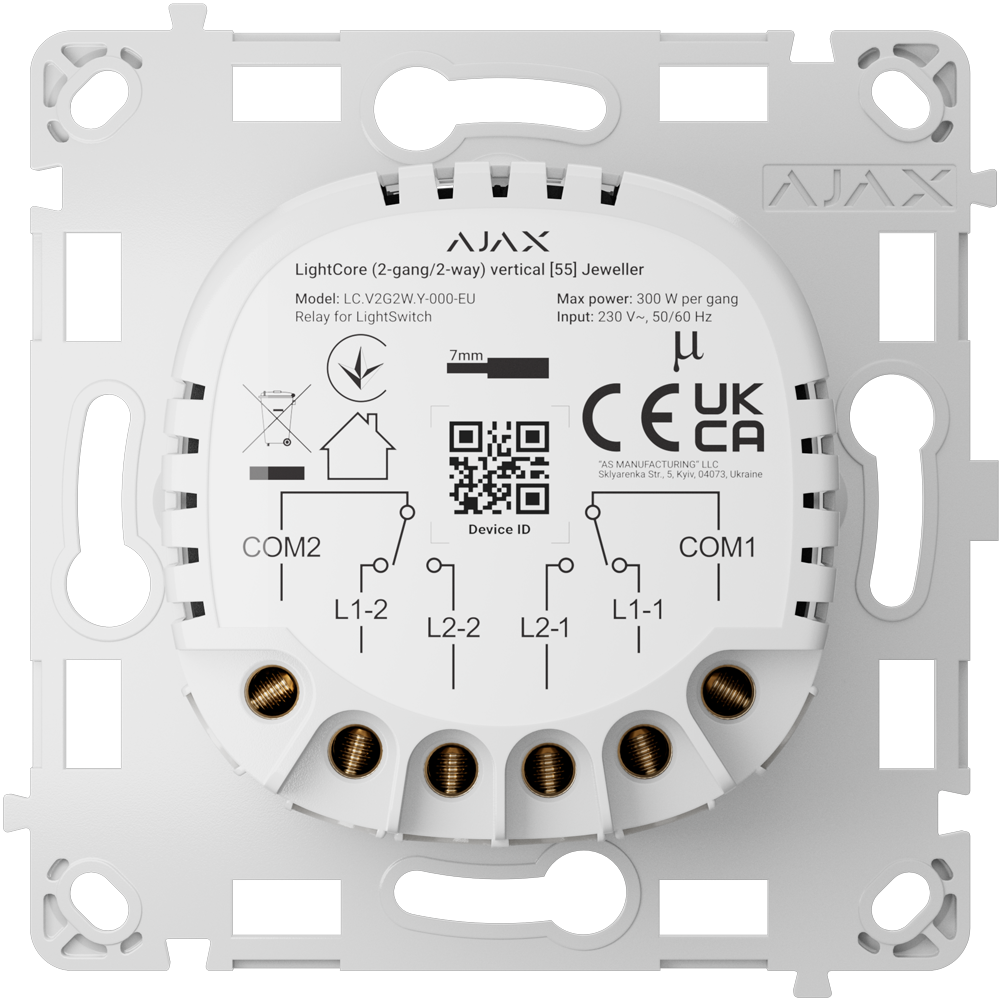

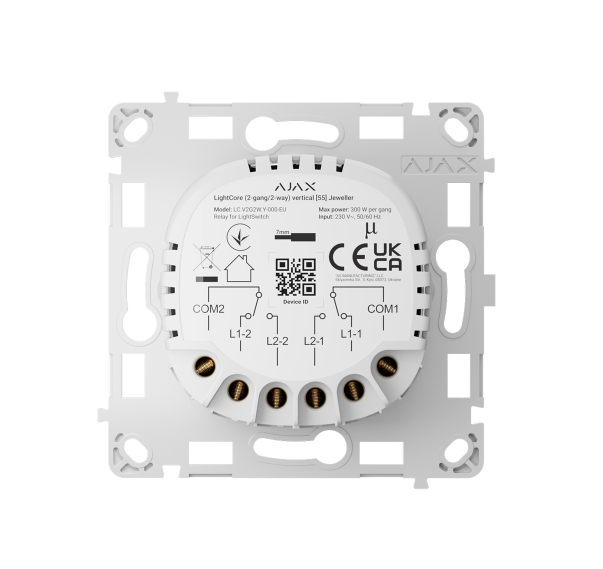

AJ-LIGHTCORE-2G2W - 2-Gang 2-Way Core

€73.46 incl tax

Intelligent dual switchable switch relay
868MHz Jeweller Wireless
Communication range to 1100 m
Power supply 230 V AC 50 Hz
No need for neutral wire

SKU: AJ-LIGHTCORE-2G2W

position

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Function	Relay for intelligent double and switchable light switch
Transmission distance	Up to 1100 m in open space
Frequency	868 MHz Jeweller
Power supply input	AC 230 V / 50 Hz
Average consumption	200 mW
Switched device power	from 5W to 600 W (up to 300W per segment)
Low power devices (<5W))	Install kit condenser
Current and temperature protection	2.6 A / +60ºC
Compatibility	Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid
Use	Interior
Temp. operation	-10º C ~ 40º C
Dimensions	76.3 (H) x 72.3 (W) x 29.2 (D) mm
Weight	48.34 g
Terminals	- 2 terminal for power phase cable, one for each lighting or load device - 4 terminals for connecting lighting devices or loads, 2 per button (without neutral wire)

Write your own review

Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
Excellent

Your name *

Your email *

Subject: *

Enquiry *

Function	Relay for intelligent double and switchable light switch
Transmission distance	Up to 1100 m in open space
Frequency	868 MHz Jeweller
Power supply input	AC 230 V / 50 Hz
Average consumption	200 mW
Switched device power	from 5W to 600 W (up to 300W per segment)
Low power devices (<5W))	Install kit condenser
Current and temperature protection	2.6 A / +60ºC
Compatibility	Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid
Use	Interior
Temp. operation	-10º C ~ 40º C
Dimensions	76.3 (H) x 72.3 (W) x 29.2 (D) mm
Weight	48.34 g
Terminals	- 2 terminal for power phase cable, one for each lighting or load device - 4 terminals for connecting lighting devices or loads, 2 per button (without neutral wire)
