Manufacturer: AJAX

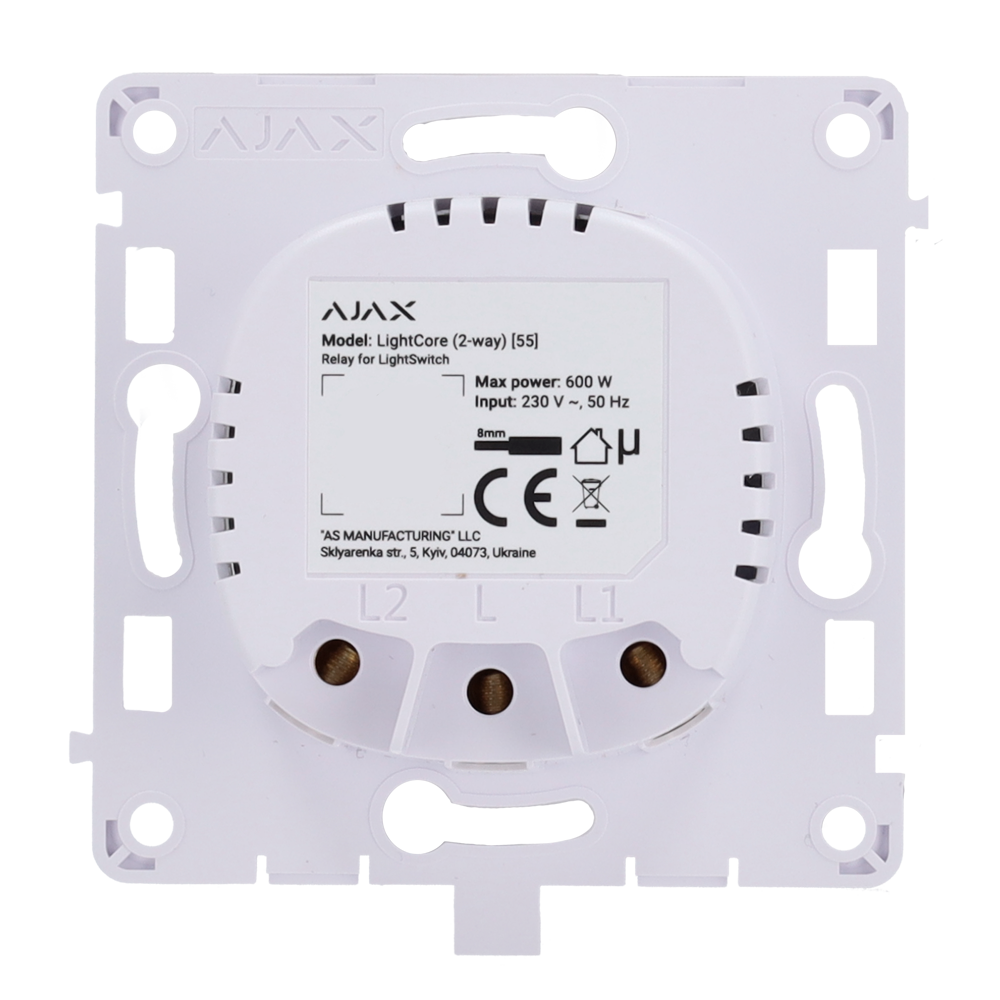

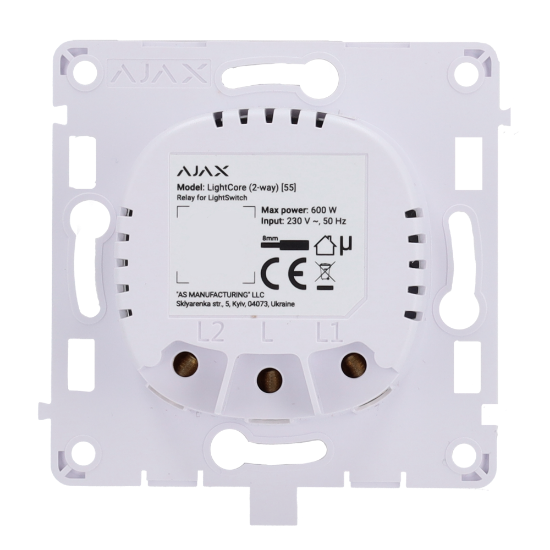

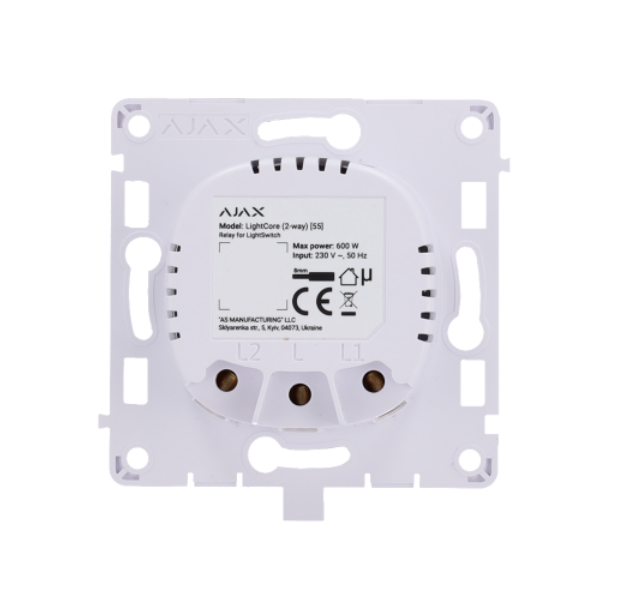

Relay for a 2-way switch

€51.99 incl tax

Relay for a 2-way switch
868MHz Jeweller Wireless
Communication range up to 1100 m
Power supply 230 V AC 50 Hz
No need for neutral wire

SKU: AJ-LIGHTCORE-2W

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Relay for switched circuits, in which the same light circuit is controlled by 2 or more switches/switches.

Function	Relay for intelligent switchable light switch (2 directions)
Transmission distance	Up to 1100 m in open space
Frequency	868 MHz Jeweller
Power supply input	AC 230 V / 50 Hz
Average consumption	200 mW
Switched device power	from 5W to 600 W
Current and temperature protection	2.6 A / +60ºC
Compatibility	Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid
Use	Interior
Temp. operation	-10º C ~ 40º C
Dimensions	76.3 (H) x 72.3 (W) x 29.2 (D) mm
Weight	48.34 g
Terminals	1 terminal for power phase cable and 2 terminals for power cable for two lighting fixtures or other load (without neutral cable)

Your name *

Your email *

Subject: *

Enquiry *

Relay for switched circuits, in which the same light circuit is controlled by 2 or more switches/switches.

Function	Relay for intelligent switchable light switch (2 directions)
Transmission distance	Up to 1100 m in open space
Frequency	868 MHz Jeweller
Power supply input	AC 230 V / 50 Hz
Average consumption	200 mW
Switched device power	from 5W to 600 W
Current and temperature protection	2.6 A / +60ºC
Compatibility	Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid
Use	Interior
Temp. operation	-10º C ~ 40º C
Dimensions	76.3 (H) x 72.3 (W) x 29.2 (D) mm
Weight	48.34 g
Terminals	1 terminal for power phase cable and 2 terminals for power cable for two lighting fixtures or other load (without neutral cable)
