    Manufacturer: AJAX

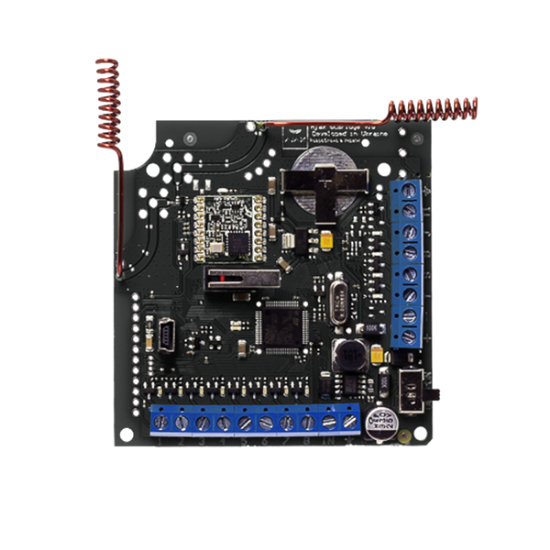

    Ocbridge Plus

    €42.95 excl tax

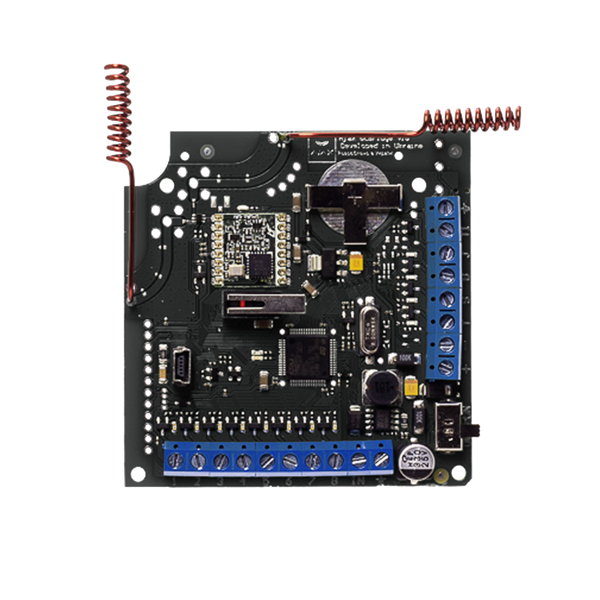

    Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas.
    SKU: ocBridge Plus
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Principle of operation

    When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm.

    Features

    The device allows setting up the detector, performing radio communication tests and detection areas tests using PC.

    Technical details

    Classification

    Receiver of wireless detectors

    Installation method

    Indoors

    Compatibility

    Wired and hybrid security systems

    Number of security areas

    8

    Number of service areas

    4

    Loops

    NO/NC, EOL, 2EOL

    Maximum number of detectors

    99

    Alarm signal delivery time

    0.15 s

    Power supply

    Terminals +/ground

    Power supply voltage

    8—14 V DC
    miniUSB — 5 V (only for set up)

    Jeweller radio technology

    Communication range with detectors — up to 2,000 m in an open space
    Two-way communication with detectors
    Operating frequencies — 868.0−868.6 MHz
    Self-adjusting RF output power — up to 25 mW
    Block encryption based on AES algorithm
    Device polling period — 12−300 s

    Capability of external antenna connection

    Yes

    Software update feature

    Yes

    Operating temperature range

    –10°С to +40°С

    Permissible humidity

    Up to 90%

    Anti-sabotage

    Protection against fraud
    Jamming detection
    Tamper

    Interface

    miniUSB

    Dimensions

    95x92x18 mm

    Weight

    139 g

    Certification

    CE

    Warranty

    Replacement and repair within 24 months of the date of sale

    Complete set

    ocBridge Plus
    Installation kit
    User’s guide
