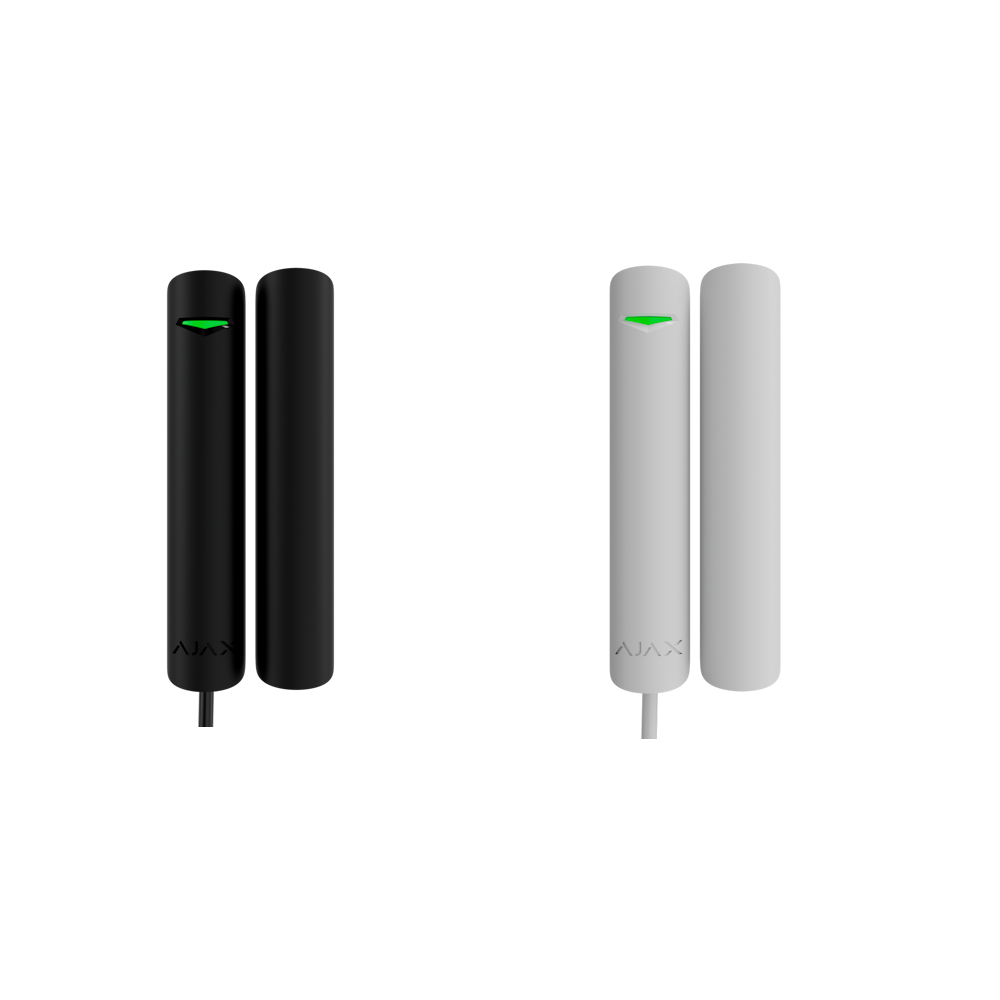

FIBRA-DOORPROTECT-G3 - Opening Detector

The FIBRA-DOORPROTECT-G3-Opening Detector is a high-security intrusion sensor developed by other brands to protect doors, windows, and safes in high-risk facilities. Boasting Grade 3 certification, this device goes beyond detecting physical openings; it features an integrated, high-precision magnetometer that instantly identifies sabotage attempts using external magnets, blocking any attempt to "mask" the door's status.

It communicates with the alarm control panel via the robust Fibra wired protocol, ensuring a split-second response at distances of up to 2,000 meters. The smart design allows for installation on various frame materials, including metal. In addition to primary magnetic detection, the detector includes an external terminal to connect third-party sensors (such as roller shutter detectors), centralizing access point protection into a single device equipped with a double security tamper.

Specifications:

• Sensor type: Magnetic reed contact with an integrated magnetometer.

• Detection capacity: Activation at 1 cm (with small magnet) or 2 cm (with large magnet).

• Security certification: Grade 3 (EN 50131), required for high-risk installations (banks, jewelry stores, etc.).

• Anti-spoofing protection: Active detection of sabotage magnets (magnetic anti-masking).

• External input: 1 dry contact terminal (Normally Closed - NC) for connecting additional third-party detectors.

• Communication technology: Fibra wired bus (4 wires) with a range of up to 2,000 meters (U/UTP cat.5 cable).

• Data security: Polling interval from 12 to 300 seconds, device authentication, and block encryption with a dynamic key.

• Power and Consumption: 24 V⎓ supplied by the control panel, featuring optimized power consumption (up to 0.17 W).

• Anti-sabotage protection: Double mechanical tamper, protecting against front case opening and wall base removal.

• Operating conditions: -10°C to +40°C, 75% humidity limit, IP50 protection class.

• Dimensions and Weight: Detector and large magnet (90 × 20 × 20 mm); Small magnet (32 × 11 × 11 mm). Total weight 74 g.

• Complete Set: DoorProtect G3 Fibra detector, SmartBracket panel, large magnet, small magnet, installation kit, and quick guide.
