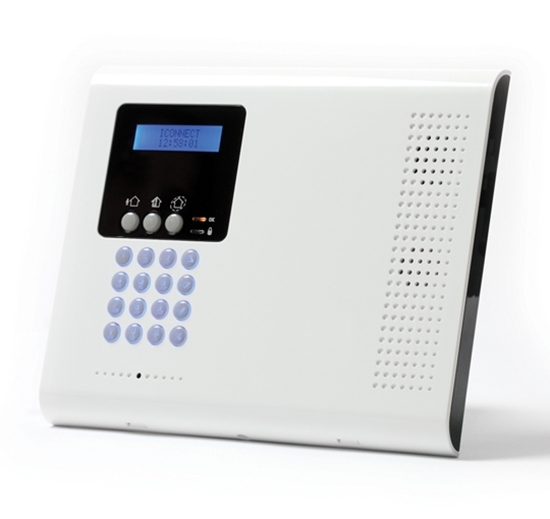

    iConnect2 3G/IP

    €579.99 incl tax
    The iConnect Control System is a full-featured 2-way wireless control system that is expected to provide a solution to the needs of most residential installations. This system has been developed based upon a design concept geared towards easy installation and use. With this in mind, the user interface is based on a simple, menu-driven model that suits the essential requirements of both the user and installer alike. You can program the iConnect Control System on-site using the on-Front Panel keypad or PC, or off-site via a PC using local programming option of the Remote Programmer. It has a 3G module for communications and an IP backup one.
    SKU: iC2 3G



    Application: The Electronics Line Application Server (MyELAS) handles all communication between the system, service providers and web users enabling monitoring and control to be performed via your Internet browser or Smartphone. The Smartphone Application - MyELAS provides access to the Web User Application from your Smartphone (iPhone or Android). Free Internet comunication service MyElas.com

    MyElas

    TechInfo: General

    • Zones: 32 wireless zones, 2 hardwire zones (Zone 33-34) ;
    • Wireless Keyfobs: 19 (Controlled or Non-controlled)
    • Wireless Keypads: up to 4
    • Wireless Repeaters: up to 4
    • Smartkeys: 12 (Controlled or Non-controlled)
    • Wireless I/O Zone Expanders: 2
    • Wireless Siren: up to 4
    • Wired Siren: 1
    • User Codes: 32
    • Arming Methods: Full, Part or Perimeter
    • Event Log: 1022 event capacity, time and date stamped
    • Weight: 1.350g
    • Dimensions: 270 x 222 x 50mm

    Communications

    • Event Reporting Accounts: up to 6, including Central Station, Follow-Me, and Voice
    • Telephone Numbers: 6 event reporting accounts, RP Callback, Service Call
    • Communication Interface Options: GPRS/Ethernet/3G

    Receiver

    • Type: Super-heterodyne, fixed frequency
    • Frequency: 868MHz, 433MHz (optional)
    • Data Encryption: SecuriCode™

    Electrical

    • Power Input: 230VAC, 50Hz
    • AC Current Consumption (GPRS Configuration): 30mA
    • (alarm), 17mA (standby)
    • AC Current Consumption (Ethernet Configuration): 35mA
    • (alarm), 17mA (standby)
    • DC Current Consumption (GPRS Configuration): 280mA
    • (alarm), 130mA (standby)
    • DC Current Consumption (Ethernet Configuration): 330mA
    • (alarm), 135mA (standby)
    • Maximum Auxiliary Output Current Rating : 50mA
    • Battery low: below 7.15V
    • Backup Battery Pack: 1 x 7.2V/1.8Ah Part No. BT5780
    • (6 x 1.2V Ni-MH rechargeable cells, size AA)
    • The maximum charging current for the BT-5780 is 5.4A
    • Fuse Ratings: 63mA/250V for 230VAC – Part No. EF1063,
    • PGM Relay Output Contact Rating: 100mA (max. load)
    • Built-in Siren: 93dB @ 10ft
    • Tamper Switch: N.C.
    • Operating Temperature: 0-60°C /32-140°F
