    Sorry - this product is no longer available

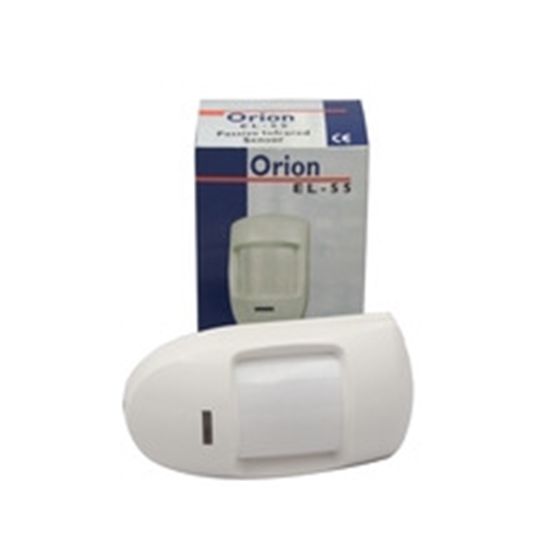

    Orion wired motion detector

    €20.32 excl tax
    With an aesthetic curvilinear design, the Orion series of detectors offers excellent detection with advanced features.
    SKU: EL-55

    Features:

    • Analog signal processing;
    • PIR detector;
    • Temperature compensation;
    • Dual element;
    • Superior RFI, EMI, ESD and lightning protection;
    • Thermal optic stabilization cavity;



    TechInfo:

    • Operating Voltage: 9 - 16Vdc;
    • Current Consumption: Standby @ 12V - 15mA, Max. (Alarm) @ 16V - 17mA;
    • Maximum Coverage: 46ft x 46ft / 14m x 14m;
    • Alarm Duration: 1 second min.;
    • Pulse Count: 1, 2 or 3 Jumper Selectable;
    • Pyroelectric Sensor: Dual Element;
    • RFI Immunity: 30V/m up to 1GHz;
    • Alarm Output: N.C., Contact Rating 10W max. ;
    • Switching Voltage: 30Vdc not to exceed 10W;
    • Switching Current: 0.3A not to exceed 10W;
    • Tamper Switch: N.C. ;
    • Contact Rating 30Vdc, 50mA max.;
    • Operating Temperature: -10° to 60°C;
    • Temperature Compensation: Thermistor;
    • Reverse Polarity Protection: Diode;
    • Fire Protection: ABS Plastic Housing;
    • LED Indicator: Jumper Selectable;
    • Dimensions: 114 x 60 x 50mm;
