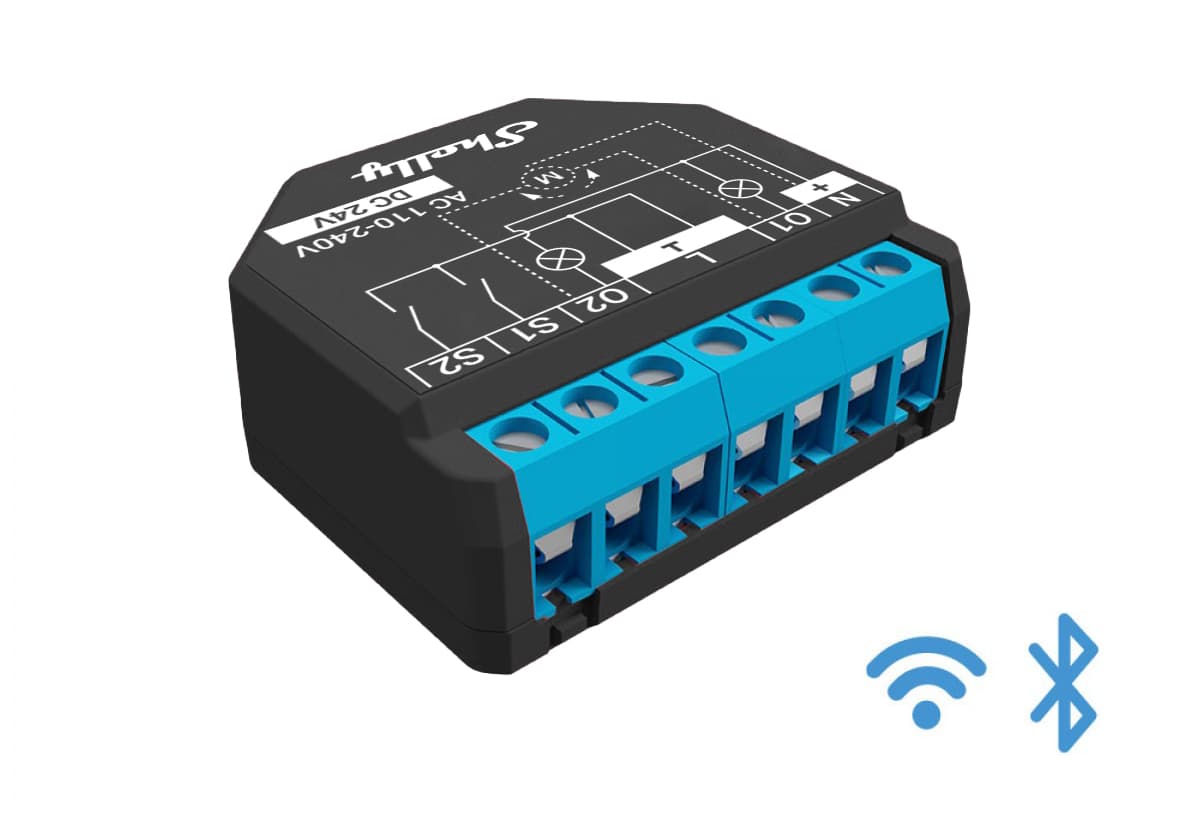

    Shelly Plus 2PM

    €23.96 excl tax
    2 channel Wi-Fi relay with power metering and cover (roller) control

    Shelly Plus 2PM is a one-phase, two channel smart relay supporting up to 10A per channel and 16A total current (18A peak). It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption. Cover (roller) control allows for the control and monitoring of roller shutters, blinds, curtains, gates, or other bi-directional AC motors.
    Shelly Plus 2PM
    Wi-Fi operated – Connects to your Wi-Fi network. No HUB required!
    Bluetooth – Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
    2 channels on the same phase
    Power metering on each channel
    Cover (roller) control-automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, other bi-directional motors
    Wide range of voltage support
    Scripting, schedules and webhooks
    SKU: Shelly Plus 2PM
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    POWER

    Power supply AC            110-240V ±10%, 50/60Hz

    Power supply DC            24 V ±10%,

    Channels            2 channels

    Max. current per channel           10A

    Max. total device current           16A (18A peak)

    Max. switching voltage 240 VAC / 30 VDC



    SPECIAL FUNCTIONS

    Dry contacts      No

    Cover (roller) control     Yes, with position control - roller shutters, blinds, awnings, curtains, gates, shades, sliding door, garage door, bi-directional AC motors

    Overload protection      Yes

    Power measurement    Yes

    Overtemperature protection     Yes

    Working without a neutral line  No



    FEATURES

    HTTP/HTTPS webhooks Yes

    Custom scripts (mJs)     Yes

    Operational temperature           -20°C to + 40 °C

    Device power consumption       < 1.4 W

    Local and remote control           Yes

    Sunrise/Sunset Yes

    Weekly Schedule            Yes

    UL Listed option             No



    CONNECTIVITY

    Wireless             802.11 b/g/n

    Wi-Fi Radio frequency   2400 – 2500 MHz

    Wi-Fi Radio signal power            1mW

    Wi-Fi Range       up to 50 m outdoors and up to 30 m indoors (depending on the building materials)



    DIMENSIONS

    Size       41 x 36 x 15mm

    Products specifications
    Product typeIn wall
    TechnologyWi-Fi
