Manufacturer: Siemens

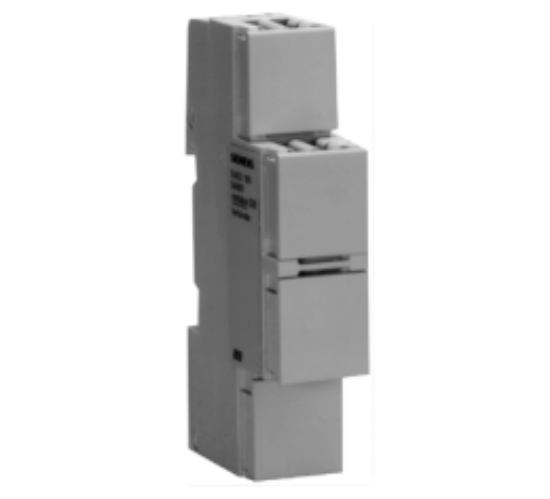

Siemens Connector 5WG1 191-5AB01

€43.05 incl tax

The REG 191/01 connector creates a connection between the data rails within a distributor cabinet or between a data rail and the bus line installed in the building.

SKU: 5WG1 191-5AB01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: 2 in stock

Qty:

Overview
Reviews
Contact Us

Technical Specifications
Connections
• bus line:
- two screwless bus connection blocks
Ø 0,6 ... 0,8 mm single core (order separately)
- pressure contacts on data rail
Physical specifications
• housing: plastic
• dimensions: N-system DIN-rail mounted device,
width: 1 SU (1 SU = 18 mm)
• weight: approx. 45 g
• fire load: approx. 900 kJ ± 10 %
• installation: rapid mounting on
DIN EN 50022-35 x 7,5 rail
Electrical safety
• fouling class (according to IEC 664-1): 2
• protection (according to EN 60529): IP 20
• protection class (according to IEC 1140): III
• overvoltage class (according to IEC 664-1): III
• bus: safety extra low voltage SELV DC 24 V
• device complies with
EN 50 090-2-2 and IEC 664-1: 1992
