    Manufacturer: X10

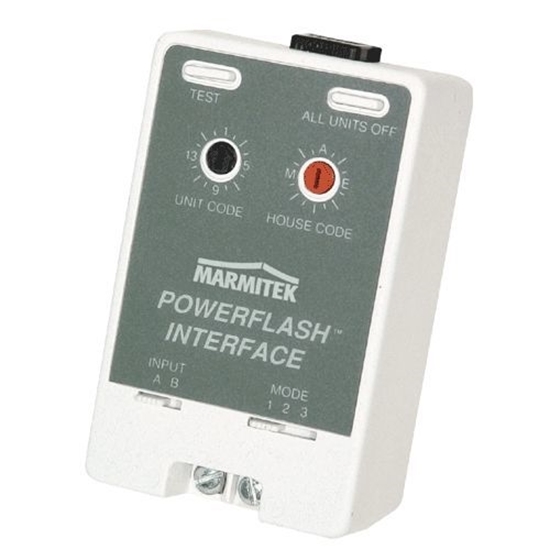

    Universal Alarm Interface

    €44.99 incl tax
    Connects to an existing system and turns on lights when tripped. It has 3 modes of operation:
    In mode 1 the SM10 will turn On all Lamp Modules and Wall Switch Modules set to its House code, and will also turn On any other Modules set to its Unit code, a stereo connected to an Appliance Module, for example. All Lamp Modules and Wall Switch Module are left in the On state when the system is deactivated, but the Module set to the same Unit code as the SM10 will turn Off.
    In mode 2 the SM10 will FLASH all lights connected to Lamp Modules or Wall Switch Modules. All Lamp and Wall Switch Modules will be left in the On state when the system is de-activated but Appliance modules set to the same House code as the SM10 will turn Off.
    In mode 3 the SM10 will turn ON any Module set to the same House Code and Unit Code as the SM10 when the system is activated and turns it OFF when the input contact is opened.
    Set the input switch to A for triggering the interface by a low voltage input (6-8 V AC, DC or audio), to B for triggering the interface by a dry contact closure. Do not connect 220V to the input terminal!
    The SM10 has a test button which allows you to activate it whether or not it is connected to a system. The All light off button allows you to turn off anything which has been turned on by the interface.
    To install the SM10 (is expected to be installed inside the security controller panel) :
    • Connect the system output to the screw terminals.
    • Connect the flying lead to the 230V power supply, most likely at the 230V side of the transformer.
    SKU: SM10E
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features: • Connects to an existing alarm system or any contact output and sends X10 codes on the power line when the contact is tripped.
    • Provided with three selectable programs.
    • Triggered by a contact closure or a low voltage input.Application: • Flash all the lights in your home when your existing burglar alarm trips.
    • Blast your stereo when your alarm trips.
    • Connect the SM10 directly to a magnetic switch to turn on lights when a door or window opens, i.e., you don’t have to own a burglar system.
    • Trigger it from sensors such as a photo cell to turn on lights when it gets dark, from a motion detector to turn on lights when someone enters a room, from a microphone to turn on lights or appliance when a sound from an intruder is detected, from a moisture sensor to sound an alarm if your basement is flooded, from a garage door opener to turn on lights when you open your garage door, etc.TechInfo: • Supply voltage: 230V ±10% 50 Hz
    • Supply current : = 20 mA capacitive
    • EMC emission: according to EN 50065-1 EN61000-3-2+3
    • EMC immunity: according to EN 50082-1
    • Electrical safety: according to EN 60950 and EN 60065
    • X-10 Powerline: 120 kHz ± 2 kHz / 2,5 Vpk-pk
    • Ambient temperature:
    - 10° C to + 50° C (operation)
    - 20° C to + 70° C (storage)
    • Dimensions: 55 x 90 x 38 mm (width x height x depth)
    Warning: For professional use! When installing consult an electrician.

    By default the Plug type sent is the European (compatible with all European sockets, except the one from the UK).
    If you wish to order another Plug type, when you place your order, please refer the type of plug that you want in the observations field.
    The available Plug types are:
    • E - European;
    • U – United Kingdom ;






    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Features: • Connects to an existing alarm system or any contact output and sends X10 codes on the power line when the contact is tripped.
    • Provided with three selectable programs.
    • Triggered by a contact closure or a low voltage input.Application: • Flash all the lights in your home when your existing burglar alarm trips.
    • Blast your stereo when your alarm trips.
    • Connect the SM10 directly to a magnetic switch to turn on lights when a door or window opens, i.e., you don’t have to own a burglar system.
    • Trigger it from sensors such as a photo cell to turn on lights when it gets dark, from a motion detector to turn on lights when someone enters a room, from a microphone to turn on lights or appliance when a sound from an intruder is detected, from a moisture sensor to sound an alarm if your basement is flooded, from a garage door opener to turn on lights when you open your garage door, etc.TechInfo: • Supply voltage: 230V ±10% 50 Hz
    • Supply current : = 20 mA capacitive
    • EMC emission: according to EN 50065-1 EN61000-3-2+3
    • EMC immunity: according to EN 50082-1
    • Electrical safety: according to EN 60950 and EN 60065
    • X-10 Powerline: 120 kHz ± 2 kHz / 2,5 Vpk-pk
    • Ambient temperature:
    - 10° C to + 50° C (operation)
    - 20° C to + 70° C (storage)
    • Dimensions: 55 x 90 x 38 mm (width x height x depth)
    Warning: For professional use! When installing consult an electrician.

    By default the Plug type sent is the European (compatible with all European sockets, except the one from the UK).
    If you wish to order another Plug type, when you place your order, please refer the type of plug that you want in the observations field.
    The available Plug types are:
    • E - European;
    • U – United Kingdom ;
