    Sorry - this product is no longer available

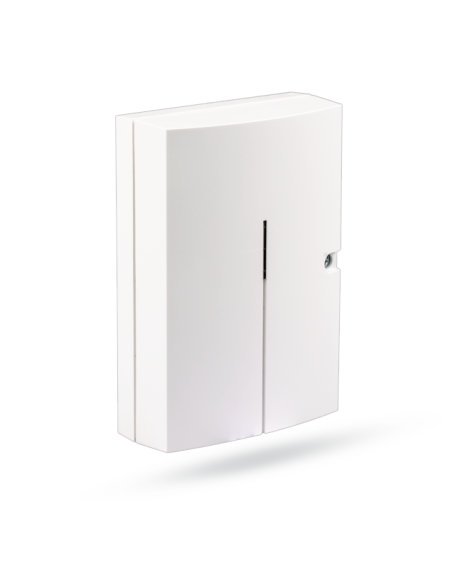

    Wireless Relay Output Module

    €82.41 incl tax
    The UC-82 is powered by an external 12V DC power supply and it provides 2 relays which can be controlled by radio signals and offers the following:
    • Remotely controllable relay outputs which follow JA-80 control panel programmable PG outputs;
    • Remote control of appliances using RC-8x controllers;
    • Relay output of JA-8x wireless detectors;
    SKU: UC-82
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options





    TechInfo:

    • Power supply: 10 to 14V DC, standby consumption approx. 20mA;
    • X and Y relay contact rating: max 2A/24V DC or 2A/120V AC;
    • Low bat terminal: max 100mA/24V DC;
    • TMP terminals: max 100mA/24V DC;
    • Communication band: 868 MHz, Oasis protocol;
    • Minimum distance from transmitting devices: 1 meter;
    • Operating environment class II: general, indoor -10 to +40 °C;
    • Enclosure: IP40 EN 60529;
    • Mechanical immunity: IK08 EN 50102;
    • Dimensions: 76 x 110 x 33 mm, antenna 35 mm;
    • Can be operated according to ERC REC 70-03;
    • This product complies with: ETSI EN 300220, ETS 300683, and EN 60950;
