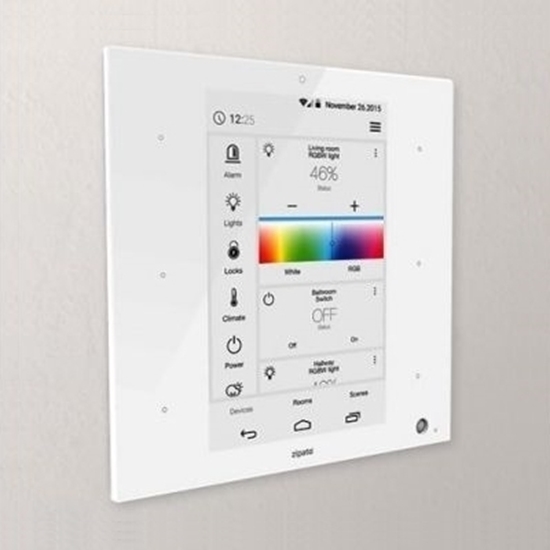

Zipatile Z-Wave + ZigBee - White

Features: APPLICATIONS:

• Security System;
• Thermostat;
• Elderly Care System;
• Home Automation;
• Video Monitoring;
• Intercom;
• Room Controller.

TechInfo: SYSTEM

• ARM Cortex-A9, Quad-core 1.6GHz CPU;
• 1024MB RAM;
• 8192MB FLASH;
• Android 5 Lollipop;

NETWORK:

• Wi-Fi 802.11 b/g/n;
• Ethernet (with optional adapter) ;
• Bluetooth 4.0;
• Philips Hue;
• Sonos;
• Nest;
• Z-Wave+ (500 series) ;
• ZigBee HA;

SENSORS:

• Noise;
• Light;
• Humidity;
• Temperature;
• Motion;
• Shock;

POWER:

• Power input: 5VDC;
• Power supply input: 100-240VAC, 50/60Hz;
• Power usage:
• Backup battery: Li-Ion 3.7V 2000mAh;

INPUT/OUTPUT:

• Touch sensitive 8” screen, 800x1280 px;
• 6 programmable scene buttons;
• Dual dry output 230VAC, 1A;
• Dry input 12-24VDC;
• External temperature sensor (1-Wire DS18B20) ;
• 2MP video camera;
• Muti-sound alarm siren;
• SD card;
• Speaker 8O/0.5W;
• Microphone;

ACCESSORIES:

• In-Wall power supply;
• Wall socket adapter;
• Wall holder;
• Screws;
• Table stand;

PHYSICAL DIMENSION:

• 8.05(W) x 8.05 (H) x 0.35 (D) inches;
• 205(W) x 205(H) x 5(D) milimeters;

WEIGHT:

• 494g (17.42oz) ;

ENVIRONMENTAL:

• Operating temperature: 0°C to 40°C (32°F to 104°F) ;
• Storage temperature: -25°C to 70°C (-13°F to 158°F) ;
• Humidity: 5% to 95% non-condensing;

REGULATION:

• Safety: UL power supply;
• EMC: FCC, CE;
• RoHS.
