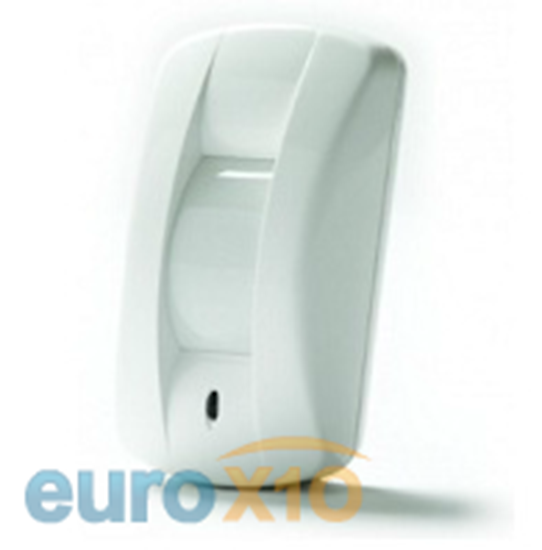

    Bi-Directional Curtain Detector

    €24.57 excl tax
    Thanks to EL’s patented Motion Vector Analysis technology, the Arrow XL operates with remarkable agility in a 9-meter curtain across display windows, skylights, sliding doors, attic entrances and corridors. Arrow XL analyzes signal pulses, recognizing their direction and distinguishing between permitted motion (approach from inside the protected perimeter) and suspicious motion (approach from outside the curtain).
    SKU: ArrowXL
    Features:
    • Micro-processor based signal processing
    • Quad element
    • Bi-directional curtain detection
    • Two independent output relays: one for “alarm” direction and one for each direction
    • Selectable alarm delay
    • User-friendly: Bi-Color LED – with a different color for each direction type
    • Ceiling or wall mount


    TechInfo:

    Technology: Indoor Curtain

    Pyroelectric Sensor Type: Quad element

    Maximum Range: 9m

    Signal Processing: Intelligent Microprocessor

    Power Supply: 10-16VDC

    RFI Immunity: 30V/m up to 1GHz

    Operating Temperature: -10° to 60°C (14° to 140°F)

    Temperature Compensation: Analog

    LED Indicator: Selectable

    Dimensions: 90 x 50 x 40mm
