    Manufacturer: Heatit

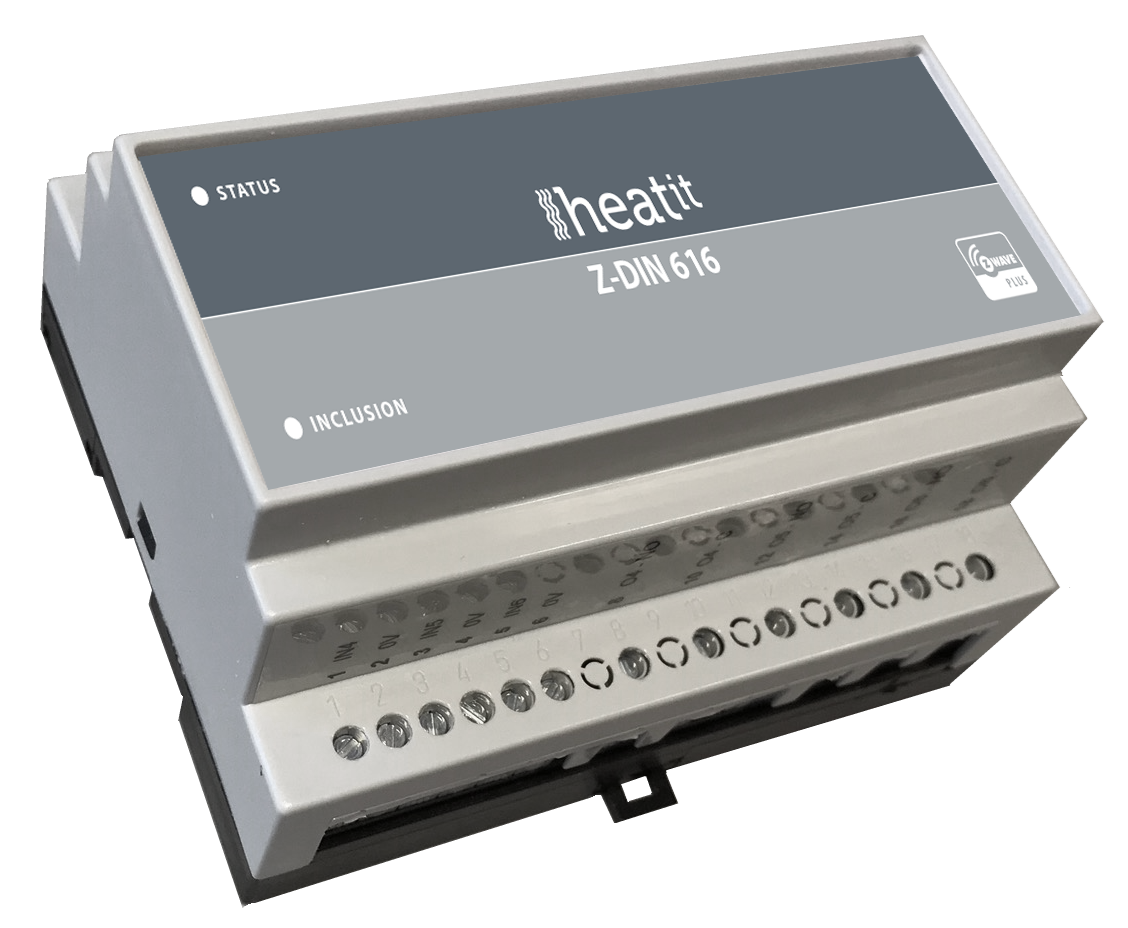

    Heatit Z-DIN 616 - 6 relay module

    €285.36 incl tax
    Heatit Z-DIN 616 is a 6 x 16A potential free relays for DIN rail mounting. The module is equipped with 6 relay switches and 6 digital inputs for mounting on a standard M36 DIN rail (EN50022).

    The 6 independent relay switches of the Heatit Z-DIN 616 can be freely controlled from the Z-Wave network and be used for many different purposes. All 6 relay switches are galvanically isolated from each other and may be used for controlling AC and/or DC loads. Each relay switch is rated for loads of up to a maximum of 16A.

    The 6 digital inputs can be connected to dry contacts, e.g. limit switches, door/window contacts, or push-buttons. Another option is to connect them to open-collector outputs from discrete sensors, e.g. PIR sensors. The 6 inputs of the Heatit Z-DIN 616 may also function as a scene controller and activate predefined scenes in other Z-Wave devices or controllers (by transmitting Central Scene notifications).

    The Heatit Z-DIN 616 is powered by a 10 – 24Vdc power supply. Initiation of Z-Wave inclusion and exclusion is executed by activating a push-button through a little hole in the front of the module. The Heatit Z-DIN 616 is equipped with a LED in the front of the module for different kinds of status indications.
    SKU: ZWHEA 45 125 61
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    FEATURES

    • DIN rail module with 6 relay outputs and 6 digital inputs
    • Z-Wave interface for other systems in order to control them through the Z-Wave network
    • Mounted on DIN-rail in switch board
    • 6 x 16A potential free relays
    • 2-poled switch solution when using 2 x relays in combination
    • Works as slave Z-Wave repeater
    • Firmware Update (OTA)
    • Supports encryption mode: S0, S2 Access Control Class,
    • S2 Authenticated Class, S2 Unauthenticated Class



    TECHNICAL DATA

    • Protocol: Z-Wave, 868,4 MHz
    • SDK 6.71.00
    • Rated voltage 10 – 24V DC 8 – 20V AC
    • Power consumption 0,6W + 0,5W pr. active relay (max 4W)
    • Screw terminals 0,2 – 2,5 mm²
    • Outputs 6 x 1-pole potential free (10mm clearance)
    • Relay switches AC1: 16A 250V AC, AC3: 750W (engine), AC15: 360VA
    • Max. inrush current 80A/20ms
    • Contacts Common and Normally Closed
    • Inputs 6 x 1-pole potential free (5 mm clearance), max 10V DC
    • Input impedance 10 kOhm
    • Network range Up to 40 meters(depending on surroundings)
    • IP Class IP 20
    • Size (HxWxD) 85 x 105 x 60 mm
    • M36 6-modules DIN rail
    • Certifications Z-Wave Plus, CE, EN 50491-3: 2009 EN 60669-2: 2004, EMC 2014/30/EU, RoHS 2011/65/EU,LVD 2014/35/EU
    Products specifications
    Technology Z-Wave
    Product type DIN rail (electric box)
    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *

    FEATURES

    • DIN rail module with 6 relay outputs and 6 digital inputs
    • Z-Wave interface for other systems in order to control them through the Z-Wave network
    • Mounted on DIN-rail in switch board
    • 6 x 16A potential free relays
    • 2-poled switch solution when using 2 x relays in combination
    • Works as slave Z-Wave repeater
    • Firmware Update (OTA)
    • Supports encryption mode: S0, S2 Access Control Class,
    • S2 Authenticated Class, S2 Unauthenticated Class



    TECHNICAL DATA

    • Protocol: Z-Wave, 868,4 MHz
    • SDK 6.71.00
    • Rated voltage 10 – 24V DC 8 – 20V AC
    • Power consumption 0,6W + 0,5W pr. active relay (max 4W)
    • Screw terminals 0,2 – 2,5 mm²
    • Outputs 6 x 1-pole potential free (10mm clearance)
    • Relay switches AC1: 16A 250V AC, AC3: 750W (engine), AC15: 360VA
    • Max. inrush current 80A/20ms
    • Contacts Common and Normally Closed
    • Inputs 6 x 1-pole potential free (5 mm clearance), max 10V DC
    • Input impedance 10 kOhm
    • Network range Up to 40 meters(depending on surroundings)
    • IP Class IP 20
    • Size (HxWxD) 85 x 105 x 60 mm
    • M36 6-modules DIN rail
    • Certifications Z-Wave Plus, CE, EN 50491-3: 2009 EN 60669-2: 2004, EMC 2014/30/EU, RoHS 2011/65/EU,LVD 2014/35/EU
    Products specifications
    Technology Z-Wave
    Product type DIN rail (electric box)
