    Manufacturer: Heatit

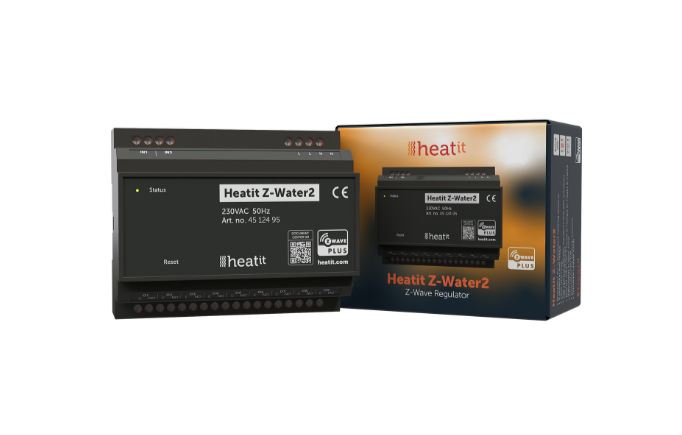

    HEATIT Z-Water

    €258.30 incl tax
    Heatit Z-Water is a DIN-rail regulator for controlling hydronic heating. The module clips right onto a DIN-rail to add a variety of functions to your wireless Z-Wave network. Heatit Z-Water is equipped with 10 relay outputs and it has 4 analog/digital inputs. The module is power supplied from a 230V AC mains connection and is able to deliver an output supply of 24V DC or 230V.

    Heatit Z-Water relay outputs may be freely controlled from the Z-Wave network, and may be used for several purposes, e.g. on/ off control of lights, controlling valve actuators in an underfloor heating system, or controlling other home automation systems.

    Heatit Z-Water analog/digital inputs (different firmware versions) may be configured to work with different functionalities. They may be connected to potential free contacts, opencollector outputs, and may also control other Z-Wave devices; switches, dimmers, etc. Furthermore, the inputs may be used as scene controllers and send central scene notifications to the Z-Wave primary controller (via digital inputs only).
    SKU: 45 124 75
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    FEATURES

    • Regulator for water-based heating systems

    • Relay outputs can control actuators in a water-based floor heating system

    • May be used to control both 24VDC actuators and 230VAC actuators

    • Inputs may be configured to serve many purposes, either as digital or analogue inputs

    • May be used with a Heatit Z-Temp2 sensor in each zone

    • DIN-rail mounting

    • Works as a Z-Wave repeater to improve the Z-Wave network range

    • Firmware updates (OTA)

    • Available firmware versions (analogue/digital inputs)

    • Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class



    This product is a security-enabled Z-Wave Plus product with encryption. The product must be used with a security-enabled Z-Wave Controller in order to fully utilize the product



    TECHNICAL DATA

    • Protocol: Z-Wave, 868,4MHz
    • Chip: Z-Wave 500 chip
    • Rated voltage: 100V - 240V 50/60Hz
    • Power consumption: 0.6W standby
    • Ambient temperature: 0°C to 40°C
    • Humidity Max.: 90% RH
    • Fuse: 3.15A Quick-Acting, UMF 250 Schurter Inc., part no.: 3405.0171.11
    • 24V DC output: Maximum 1.17A, 28W
    • Max. switching current: 5A
    • Max load per relay: 150W
    • Max voltage: 250V AC, 30V DC
    • Inputs Max. input voltage: 10V DC
    • Input impedance: 10 KΩ
    • Loop output voltage: 5V DC
    • Size (LxHxW): 160 x 86 x 58mm

    Approvals Z-Wave Plus CE, EN 50491-3: 2009, EN 60669-2: 2004, EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU
