    Manufacturer: Philio

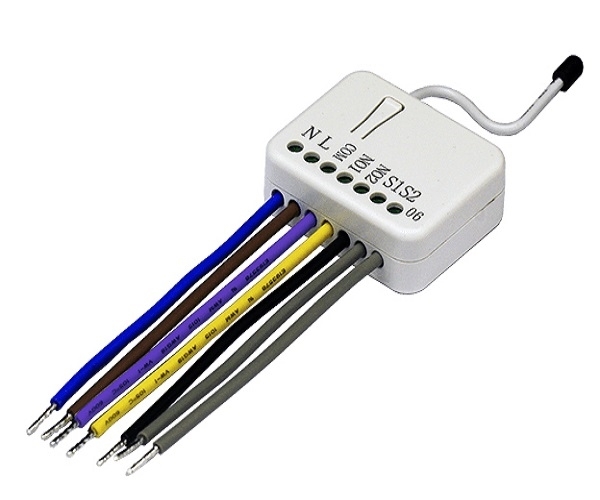

    Relay Insert 2 * 1.5 KW

    €48.70 excl tax
    The Philio Insert Switch allows controlling two independent loads both wirelessly via Z-Wave and locally utilizing a traditional wall switch. Thanks to its calibration technology the PAN06 cannot only be used to switch AC devices ON and OFF, it also works perfectly with many kind of light, e.g. incandescent, fluorescent and LEDs.
    In addition to this, the PAN06 can be connected to 12V/DC, which makes it possible to switch 12V MR-16 light as well.
    The device is placed in a wall box right behind the normal switch. The switch is not longer directly connected to the load but acts as input device for the insert that is controlling the load.
    This device is designed for a 3 wire system and needs a neutral wire in the wall box.
    SKU: ZWPHI PAN06

    Features:

    • World first two relay Z-wave 400 series module;
    • Adopt newest Z-wave 400series chip, support multichannel operation and higher data rate (9.6/40/100kbps);
    • Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series Z-wave module) to enhance the communication range;
    • Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive 2009/125/EC no. 1275/2008.



    TechInfo:

    • Input voltage: AC 90~240V, DC 24~60V;
    • Load: resistive 2x1.500W @230V, 2x800W @120V;
    • Output type: dry contact relay
    • Power consumption: 0,48W@230V, 0,35W@120V (standby)
    • Frequency: 868.42 MHZ (EU);
    • Range: 40m indoor, 100m outdoor;
    • Operation Temperature: 0~40°C;
    • Humidity: 85%RH max;
    • Weight 30g;
    • Dimension (WxHxD): 47,5x39x15,6 mm.
