    Manufacturer: Qubino

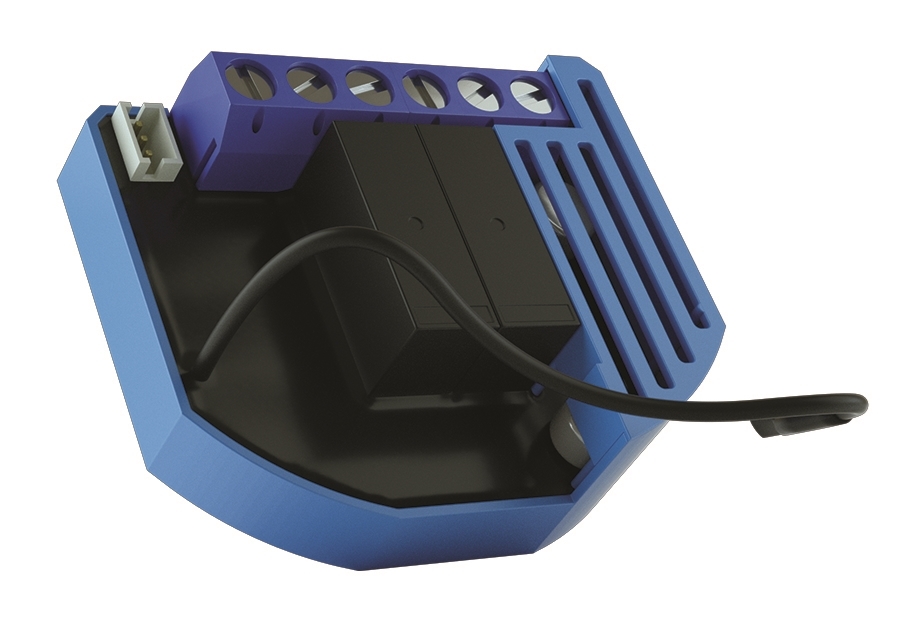

    Flush 1 Relay Potencial Free

    €48.70 excl tax

    This module is used for switching On or Off 1 electrical device like light, fan, oven, washing machine, iron, power socket, garage door, electric radiator, water heater, etc.

    With this module can feed your load with the desired voltage because it has a separate entrance for this purpose.
    item also available in:
    908.4 MHz - USA/Canada, México, Chile
    921,40 MHz - Australia, Brazil, New Zealand
    Contact for details on minimal quantities and deadlines for these frequencies

    SKU: ZWGOA ZMNHND1
    Availability: 30 in stock

    Features:

    Reduce energy consumption, decrease your electricity costs and contribute to a greener environment

    Extremely low own energy consumption, less than 0,4W, module is measuring the power consumption of the connected electrical device in Watts and total consumption in kWh. The power consumption data can be easily collected and aggregated without any additional costs.

    Additional functionalities, make your home even more connected

    The module can be used as an extension for control the heating/cooling system. The module has the option to connect a digital temperature sensor.



    TechInfo:

    • Power supply: 110 - 230 VAC ±10% 50/60Hz, 24-30VDC;
    • Rated load current of AC output (resistive load)*: 1x 10
    • Rated load current of DC output (resistive load): 1x 10A/30VDC;
    • Output circuit power of AC output (resistive load): 1x 2300W (230VAC);
    • Output circuit power of DC output (resistive load): 1x 240W (24VDC);
    • Power measurement accuracy: P=5-50W, +/-3W; P>50W, +/-3%;
    • Digital temperature sensor range (sensor must be ordered separately): -50°C ~ +125°C;
    • Operation temperature: -10°C ~ +40°C;
    • Distance: up to 30 m indoors (depending on building materials);
    • Dimensions (WxHxD) (package): 41,8x36,8x16,9mm (79x52x22);
    • Weight (Brutto with package): 28g (34g);
    • Electricity consumption: 0,4W;
    • For installation in boxes: Ø=60mm or 2M;
