Sorry - this product is no longer available

Manufacturer: Fibaro

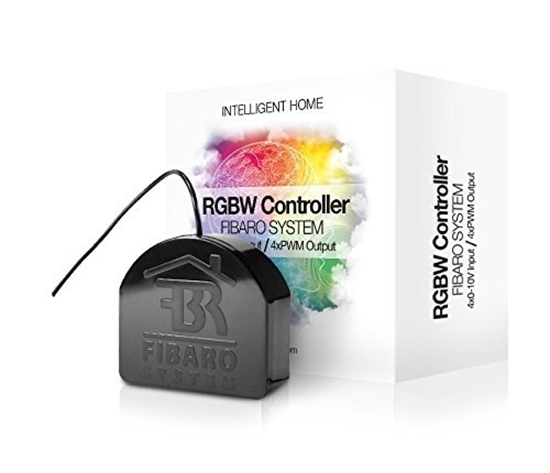

RGBW Controller

Be the first to review this product

€59.99 incl tax

Fibaro RGBW Controller is a universal, Z-Wave compatible RGB/RGBW controller. Fibaro RGBW Controller uses PWM output signal, which enables it to control LED, RGB, RGBW strips, halogen lights and fans. Controlled devices may be powered by 12 or 24 VDC. In addition the device supports up to four, 0V - 10V analog sensors, such as temperature sensors, humidity sensors, wind sensors, air quality sensors, light sensors etc. All IN and OUT terminals may be user configured for LED control or 0V-10V signal readouts. The module supports power reading and remote firmware update.

Need price for quantities? Please contact us!
Chat tool;
Contact form;
Phone: +351 223 744 938 ;
email: [email protected] ;
Skype: EuroX10.com

SKU: ZWfibFGRGBWM441

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Features: Fibaro RGBW Controller may control:

12 / 24VDC powered RGB strips;
12 / 24VDC powered RGBW strips;
12 / 24VDC powered LED strips, bulbs, etc. ;
12 / 24VDC powered halogen lights;
12 / 24VDC powered low output power fans;

Additional features:

0-10V sensors signal readouts;
0-10V potentiometer signal readouts, and managing outputs accordingly;
controlled by momentary or toggle switches;

TechInfo:

Power Supply: 12 V DC / 24 V DC;
Rated output power: combined 12A (sum of all connected output channels), 6A for single output channel;
PWM output frequency: 244 Hz;
Electricity consumption: 0,3W;
Radio signal power: 1mW;
For installation in boxes with a minimum diameter of 50 mm;
Max load (e.g. halogen bulbs): at 12V - 144W combined, at 24V - 288W combined;
In accordance with EU standards: EMC 2004/108/EC, R&TTE 199/5/WE;
Radio protocol: Z-Wave;
Radio frequency: 868,4 MHz EU (also available for the US, Australian/New Zealand and Russian markets);
Range: up to 50m outdoors / up to 30m indoors (depending on terrain and building structure);
Operational temperature: 0-40ºC;
Dimensions (L x W x H): 42x37x17;

Your name *

Your email *

Subject: *

Enquiry *

Features: Fibaro RGBW Controller may control:

12 / 24VDC powered RGB strips;
12 / 24VDC powered RGBW strips;
12 / 24VDC powered LED strips, bulbs, etc. ;
12 / 24VDC powered halogen lights;
12 / 24VDC powered low output power fans;

Additional features:

0-10V sensors signal readouts;
0-10V potentiometer signal readouts, and managing outputs accordingly;
controlled by momentary or toggle switches;

TechInfo:

Power Supply: 12 V DC / 24 V DC;
Rated output power: combined 12A (sum of all connected output channels), 6A for single output channel;
PWM output frequency: 244 Hz;
Electricity consumption: 0,3W;
Radio signal power: 1mW;
For installation in boxes with a minimum diameter of 50 mm;
Max load (e.g. halogen bulbs): at 12V - 144W combined, at 24V - 288W combined;
In accordance with EU standards: EMC 2004/108/EC, R&TTE 199/5/WE;
Radio protocol: Z-Wave;
Radio frequency: 868,4 MHz EU (also available for the US, Australian/New Zealand and Russian markets);
Range: up to 50m outdoors / up to 30m indoors (depending on terrain and building structure);
Operational temperature: 0-40ºC;
Dimensions (L x W x H): 42x37x17;

PRICE BREAKS - The more you buy, the more you save

Quantity

Price

€49.99
